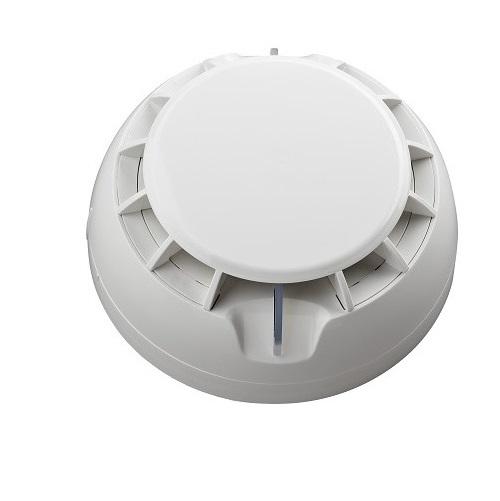

Đầu dò báo khói thường TELETEK SensoMAG S30
- SensoMAG S30 is an optical-smoke detector with digital processing algorithm. The detector is designed to detect smoke in the very early stage of the fire situation.
- SensoMAG S30 is suitable for installing in any conventional fire alarm system designed with fire alarm panel with fire alarm threshold between 10mA and 15mA.
- SensoMAG S30 is a high sensitive optical smoke detector. It is suitable for applications where early detection of smoke or fire is with great importance, for example office buildings, supermarkets, schools, etc.
- Auto temperature compensation.
- Digital process algorithm.
- Low profile design.
- LED indication with 360° visibility.
- Sensor status indication on every 8 seconds.
- EN54 – 7 certified.
- Supply voltage U: 9-30 VDC (Nom. 12/24 VDC).
- Alarm state current:
+ Base type B24 and B24D: 20mA/12-30V;
+ Base type B24RD: 33mA/12V, 49mA/ 24V, 57mA/30V;
+ Base type B12: 18mA/9V, 29mA/12V, 32mA/15V.
- Output in alarm state at terminal RI: 20mA (max)/-3.3V.
- Degree of protection: IP30.
- Operational temperature range: -10 / +60°С.
- Relative humidity resistance: (93 ± 3) % at 40°С.
- Dimensions (incl. base): diameter 102mm, h 42mm.
- Weight (incl. base): 160g.
- Bảo hành: 12 tháng.
