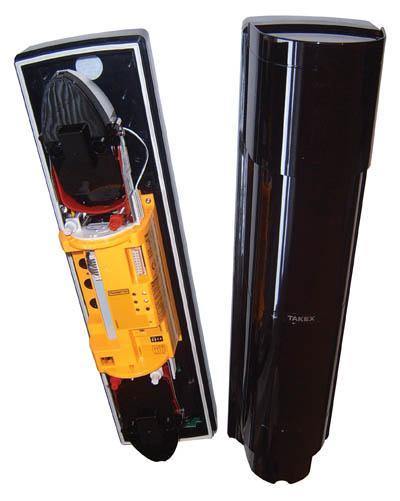

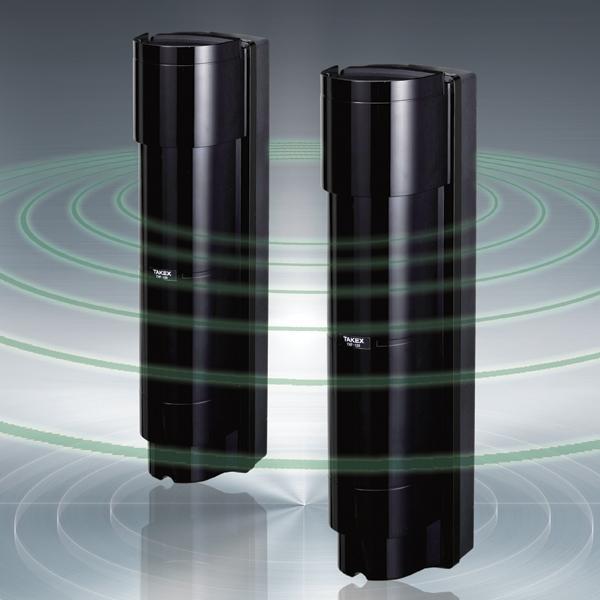

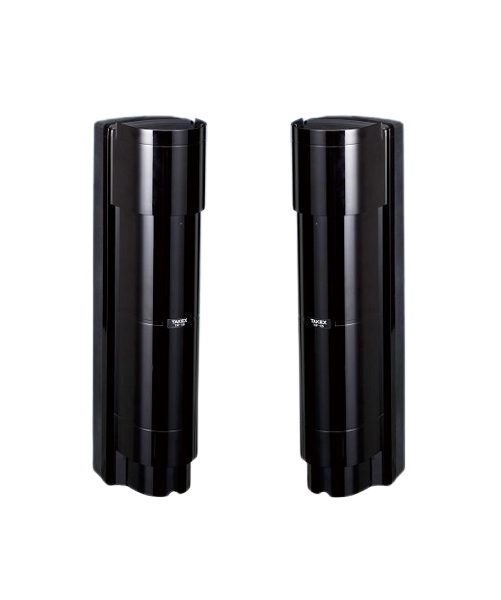

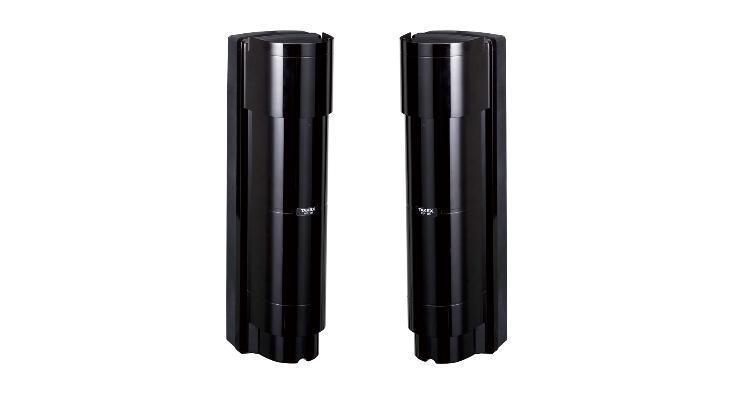

Đầu dò photo Beam hồng ngoại TAKEX TXF-125E
– Hỗ trợ 4 tia hồng ngoại đồng bộ, điều chế, 4 tần số.

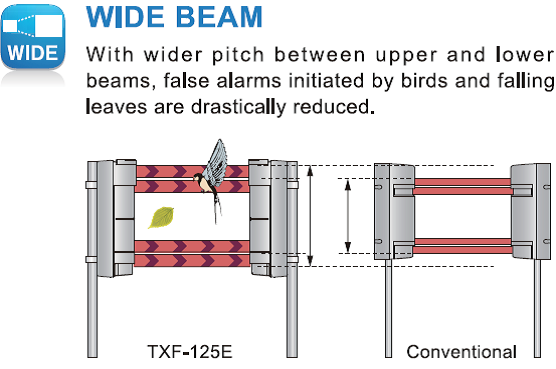

– Mạch bù, lọc chống nhiễu, chống báo động giả khi lá rơi, chim.
– Khoảng cách bảo vệ: 25, 50, 75, 100 mét.
– Thời gian đáp ứng: 0.05s, 0.1s, 0.25s, 0.5s.
– Tắt/ bật: 2 tia trên/ dưới.
– Lắp đặt: ngoài trời, trong nhà.
– Độ kín: IP65. Xoay ngang: ± 90°; đứng ± 20°.
– Pin: 5 năm. SAFT LS33600 (DC3.6V) (Mua thêm)
Đặc tính kỹ thuật
Model | TXF-125E |
Detection system | Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption) |
Infrared beam | Single modulation pulsed beam by LED (near infrared beam light-emitting diode) |
Protection distance | Outdoor 330ft (100m) or less |
Beam power setting | 330ft (100m) / 245ft (75m) / 165ft (50m) / 82ft (25m) |
Max. arrival distance | 10 times (1000m) |
Response time | 0.05 sec, 0.10 sec, 0.25 sec, 0.5 sec |
Battery | SAFT: LS 33600 (or equivalent) 3.6V, 17Ah |
Battery life | Transmitter = Up to 5 years* (2 batteries) |
Receiver = Up to 5 years* (2 batteries) | |
Approximate, not guaranteed | |
Beam adjustment | Horizontal: ±90°, Vertical: ±20° |
Alarm LED | Red LED (Receiver) ON: when an alarm is initiated |
Attenuation LED | Red LED (Receiver) ON: when an alarm is initiated |
Ambient temperature range | -10°C to +50°C (14°F to 122°F) |
Functions | Modulated beam frequency selection |
Tone indicator | |
Repeat output | |
Monitor jack | |
Response time adjustment | |
Upper/Lower beam switch | |
Low battery indication | |
Wireless alignment checker connecting function | |
Battery saving function | |
Battery sharing | |
IP rating | IP65 |
Mounting positions | Outdoor, Indoor |
Weight | Transmitter: 1.5kg (without batteries), Receiver: 1.5kg (without batteries) |
– Sản xuất tại Israel.
– Bảo hành: 12 tháng.
