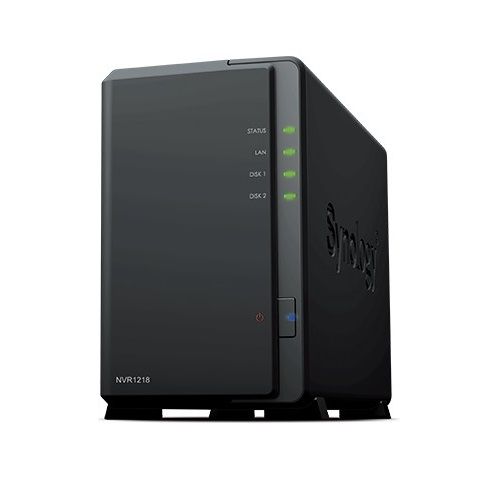

Đầu ghi hình camera IP 12 kênh SYNOLOGY VisualStation NVR1218
- Hỗ trợ kết nối tối đa 12 kênh camera IP.
- Chuẩn nén hình ảnh: MJPEG, MPEG-4, MxPEG, H.264, H.265.
- External port: USB 3.0 x 1, USB 2.0 x 2, eSATA x 1, HDMI x 1, 3.5mm audio jack x 2 (input/output), COM x 1 (for POS system connection).
- Kích thước (H x W x D): 165 x 100 x 225.5 mm.
- Trọng lượng: 0.9kg.
Đặc tính kỹ thuật
| Hardware | |
| Configuration | NVR1218 supports up to 12 cameras in total and comes with 4 camera licenses pre-installed. |
| CPU | Embedded NVR SoC dual-core 1.0GHz |
| Memory | DDR3 1GB |
| Compatible drive type | 3.5 inch SATA x 2 (Hard drives not included) |
| External port | • USB 3.0 x 1 • USB 2.0 x 2 • eSATA x 1 • HDMI x 1 • 3.5mm audio jack x 2 (input/output) • COM x 1 (for POS system connection) |
| Supported video output resolution | 1920 x 1080 (1080p), 60 Hz |
| Size (HxWxD) | 165 x 100 x 225.5 mm |
| Weight | 0.9 kg |
| LAN | Gigabit (RJ-45) x 1 |
| Supported USB devices | USB storage, keyboard, mouse, joystick, uninterruptible power supply (UPS) |
| AC input power voltage | 100V to 240V AC |
| Power frequency | 50Hz to 60Hz, single phase |
| Operating temperature | Adapter: 0 °C to 40 °C (32 °F to 104 °F) Chassis: 5 °C to 45 °C (40 °F to 113 °F) |
| Storage temperature | -20 °C to 60 °C (-5 °F to 140 °F) |
| Relative humidity | 5% to 95% RH |
| Power consumption | 13.64 W, 46.57 BTU/hr |
| Agency certifications | FCC Class B, CE Class B, BSMI Class B |
| General specification | |
| File system | • Internal: ext4 • External: ext4, ext3, FAT, NTFS, HFS+ (read only) |
| Supported RAID type | • Synology Hybrid RAID (SHR) • Basic • JBOD • RAID 0 • RAID 1 • RAID 5 (with Synology Expansion Unit DX517) • RAID 6 (with Synology Expansion Unit DX517) |
| Storage management | • Maximum single volume size: 16TB • Maximum internal volume: 256 • Maximum shared folder: 256 |
| Surveillance Station | |
| Maximum IP camera | 12 Channels (360FPS at 720p) |
| IP Camera support | • Video codec: MJPEG, MPEG-4, MxPEG, H.264, and H.265 (MxPEG and H.265 do not support Local Display) • Audio codec: PCM, AAC, AMR, G.711, and G.726 • Camera bit-rate fine-tuning via constant and variable bit-rate control • ONVIF™ 2.6, Profile S certified, Profile G for edge recording |
| Live View | • Pan Tilt Zoom (PTZ) support with configurable PTZ speed • On-screen camera controls: camera zoom, focus, iris adjustment, auto pan, and auto object tracking • E-Map, Snapshot, and Snapshot Editor supported for instant editing after taking a snapshot • Video quality settings: bit-rate control, image quality, resolution, and FPS • Joystick support for easy navigation • Alert panel for a quick display of the most recently triggered events • Customizable layout and sequential camera view support |
| Recording | • Supported recording modes: manual, continuous, motion detection, I/O alarm, action rule, and customized • Recording formats: MP4 • The customized recording mode can be configured as a combination of conditional events, including motion detection, audio detection, tampering detection, and alarm input • Edge recording on the SD card of certain supported cameras • Configurable pre-recording and post-recording time |
| Playback | • Customizable layouts for playback in Timeline • Playback controls include pause, stop, previous recording, next recording, fast forward, slow motion, frame by frame, and digital zoom in/out • Embedded watermark for evidence integrity • Image enhancements including brightness, contrast, saturation, and sharpness (web client only) |
| Management | • Create and manage different user privileges • Rotate recorded videos by archived days or storage size • Event notification supported via SMS, E-mail, and mobile devices via DS cam • Recordings can be backed up to an external storage or remote server • Built-in NTP server • Supported tunnel: MPEG-4, H264 via RTSP over TCP, UDP, and HTTP |
| iOS/Android™ applications | DS file, DS finder, DS cam |
| Other packages | File Station, VPN Server, Storage Analyzer, Hyper Backup |
| Surveillance desktop client support | Windows 7 and 10, Mac OS X® 10.11 onwards |
| Supported browsers | Internet Explorer® 11 (excluding Microsoft Edge), Safari® 10 onwards |
| Environment | RoHS compliant |
- Bảo hành: 36 tháng.
