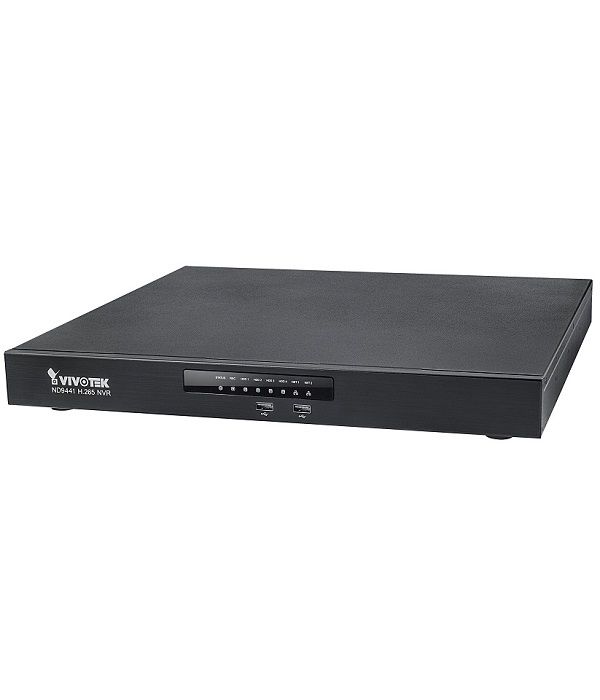

Đầu ghi hình camera IP 16 kênh Vivotek ND9441P
- Hỗ trợ kết nối tối đa 16 kênh camera IP.
- H.265/H.264 Compression Technology
- 4K Display for Clear Monitoring
- Up to 1080p 16CH Decoding Ability
- Smart Search II
- Smart VCA Event Search
- Cybersecurity Management
- Trend Micro IoT Security
- 802.3at/af Compliant PoE port x 16
- PoE Management
- RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
- Multiple Browsers Supported: IE, Chrome and Firefox on both Windows & macOS
- Supports VCA Counting Solution
Đặc tính kỹ thuật
| Model | ND9441P | |
| OS | Embedded Linux | |
| CPU | ARM Processor | |
| Flash | 256 MB | |
| RAM | 2 GB | |
| Watchdog | Hardware + Software | |
| Power Restoration | System Restart Automatically after Power Recovery | |
| Local Display | ||
| LiveView Display | 16 Channels Multi-Layout Display: 1×1, 2×2, 3×3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4×4 | |
| Video Output | HDMI x1, VGA x1 | |
| Display Resolution | 3840×2160, 1920×1080, 1280×720 | |
| Camera Position | Change the viewcell position on the Live View screens | |
| Stream Application | ConstantAuto Adaptive Stream | |
| Monitor Enhancement | OSD display (NVR), OSD display (camera), camera information, remote I/O control, event notification, aspect ratio | |
| Fisheye Dewarp | 1O, 1P, 1R, 1O3R, 1O8R | |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control | |
| Video | ||
| Video Format | H.265, H.264, MJPEG | |
| Graphic Decoder | Hardware decoding | |
| Decoding Resolution | Up to 4096×4096 (H.265) 8192×8192 (H.264) | |
| Decoding Capability | H.265/H.264: 3840×2160 @ 120 fps (4-CH) 1920×1080 @ 480 fps (16-CH) | |
| Audio | ||
| Audio Format | G.711, G.726 | |
| Audio In/Out | 3.5 Phone jack audio output x1 3.5 Phone jack audio input (reserved) x1 | |
| Record | ||
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) | |
| Recording Stream | Single | |
| Recording Throughput | 192 Mbps | |
| Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming | |
| Recording Setting | Recycle (unit: Day) | |
| Watermark | Supported | |
| Storage & Backup | ||
| HDD Devices | Internal x4 (3.5″) | |
| HDD Max. Capacity | 8 TB | |
| RAID | RAID 0, 1, 5 (single volume up to 16TB) | |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T. | |
| External Storage | USB Storage (USB 3.0) | |
| Video Clip Export | USB Dongle (FAT Format) | |
| Schedule Backup | FTP | |
| Playback | ||
| Playback Display | 4 Channels Multi-Layout Display: 1×1, 2×2, 1P+3, 1V+3 | |
| Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) | |
| Video Search | By calendar, date/time, and alarm | |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) | |
| Snapshot | JPEG | |
| Video Clip Export | EXE | |
| Network | ||
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x 2 | |
| Video Throughput for Remote Client | 96 Mbps | |
| PoE | 802.3at/af Compliant PoE Ports x 16 (Total Max. 160 W) | |
| PoE Management | Supported | |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter | |
| External Interface | ||
| USB | Front: 2 (USB 2.0), Back: 1 (USB 3.0) | |
| Alarm In | 8 | |
| Alarm Out | 4 | |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 | |
| RS485 | 1 Port (Reserved) | |
| System | ||
| POS Integration | Supported (by project request) | |
| UPS Integration | Supported (by project request) | |
| Camera Integration | ONVIF Profile S | |
| Event | Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO | |
| Event Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO,VIVOCloud APP Notification | |
| User Management | User level: administrator, regular user | |
| Log | System, recording, user, error | |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time | |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese | |
| Advanced Features | ||
| VCA Counting Solution | Supported | |
| Smart VCA Event | Supported (* IPcam firmware is coming soon) | |
| Smart Search II | Supported | |
| Trend Micro IoT Security | Supported | |
| Cybersecurity Management | Supported | |
| Remote Client | ||
| Software AP | Shepherd, VAST 2 | |
| Mobile/Tablet App | iViewer (Android & iOS) | |
| Web Browser | Internet Explorer 10 (32 bit) or above/ Windows Chrome v68.0.3 & Firefox v61.02 or above/ Windows & macOS | |
| VIVOCloud | Supported | |
| General | ||
| Power Input | 100-240V AC, 50/60Hz | |
| Power Consumption | Max. 260 W | |
| Dimensions | 430 (W) x 400 (D) x 44.5 (H) mm | |
| Weight | 4.5 kg (without HDD) | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) | |
- Bảo hành: 24 tháng.
