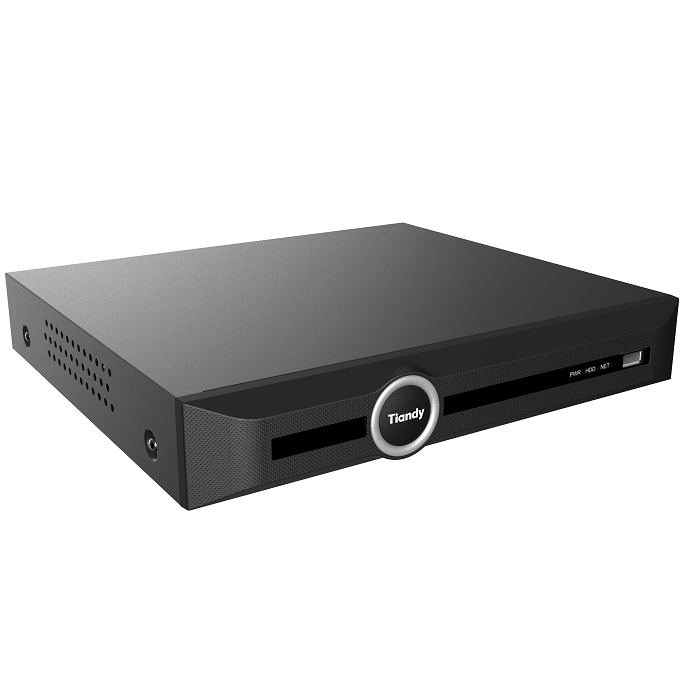

Đầu ghi hình camera IP 20 kênh TIANDY TC-R3220
| • Chuẩn nén hình ảnh S+265 |
| • Ghi hình độ phân giải tối đa 4K |
| • Hỗ trợ phân tích thông minh hình ảnh 20 kênh |
| • Tìm kiếm và ghi hình thông minh |
| • Hỗ trợ chức năng ANR ( tự động đồng bộ đữ liệu về NVR ) |
| • Nâng cấp qua cloud, nâng cấp camera IP qua cloud |
| • Plug in free |
| • 1x HDMI, 1x VGA, cùng 1 hình ảnh, độ phân giải tối đa 4K |
| • 2 SATA(tối đa 10TB), 2 USB |
| • Giao diện V3.0, có hỗ trợ thanh điều hướng PTZ |
| • Chứng nhận về an toàn Châu Âu và kiểm định theo tiêu chuẩn Hoa Kỳ |
| - CE, FCC |
Thông số kỹ thuật
| Video/Audio Input | |
| Incoming Bandwidth | 80Mbps |
| IP video | 20-ch |
| Audio IN | 1-ch 3.5mm |
| Video/Audio Output | |
| Outgoing Bandwidth | 80Mbps |
| HDMI | 1-ch Resolution:3840×2160,2560×1600，2560×1440，1920×1080，1280×720， |
| 800×600,1024×768,1366×768,1440×900,1280×800 | |
| VGA | 1-ch Resolution: 1920×1080，1280×720，800×600,1024×768，1366×768, |
| 1440×900,1280×800 Adjustable Output mode, Self-adaptive Resolution | |
| I-Frame Record | Y |
| Recording Resolution | 4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/ |
| 5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520) | |
| 3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio OUT | 1-ch RCA |
| Synchronous Playback | 1-ch 4K/4-ch 1080P/8-ch 720P/16-ch 4CIF |
| Decoding | |
| Compression | S+265/H.265/H.264H/H.264M/H.264B |
| Live View/Playback | 4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/ |
| 5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/ | |
| 3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Capability | 1-ch 4K/4-ch 1080P/8-ch 720P/16-ch 4CIF |
| Display Split | 1/3/4/6/8/9/10/13/16/20A/20B |
| E-Zoom | Y |
| Network | |
| Remote Connection | 32 Users, Up to 160ch Videos |
| Browser | CHROME V45 or lower, IE, FIREFOX |
| Mobile Software | P2P&DDNS for IOS&Android (App Name: Easylive) |
| Internet Protocol | IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP |
| DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE | |
| Activated by Alarm | |
| ANR | Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
| Advanced | Remaining Bandwidth Display |
| Hard Disk | |
| SATA | 2 SATA for 2 HDDs |
| Capacity | Up to 8TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota, Customized Recording Days |
| External Interface | |
| HDMI Output | 1ch |
| VGA Output | 1ch |
| Two-way Audio | Y |
| Network Interface | 1X RJ-45 10/100Mbps Self-adaptive Ethernet Interfaces |
| Serial Interface | N/A |
| USB Interface | 2x USB2.0 |
| Alarm In/Out | 0/1 |
| Advanced | |
| NAS | NFS Protocol, Support Manual Backup Only |
| Plug and Play | Y, Only for Tiandy Cameras |
| Image Flip | Y, Only for Tiandy Cameras |
| Hot Standby | N+1 |
| Corridor Mode | Y, 16:9 to 9:16, Only for Tiandy Cameras |
| Video Analytics(VCA) | Support 20-ch Camera VCA Function,Including Tripwire/Double Tripwire/ |
| Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/ | |
| Crowd/Face Detection/People Counting/Perimeter//Audio Abnormal Detection/ | |
| Video Abnormal Detection/On duty Detection | |
| Smart Search | Quickly Search Target Videos according to Channel No., Records Type, |
| Records Time, File Type and VCA( Only for Tiandy Cameras ) | |
| Trigger Recording | Manual/Timing/Motion Detection/Port Alarm/ VCA Alarm/Video Occlusion |
| Smart Recording | Set Recording Bite Rate for Different Time |
| Alarm Recording | Pre Alarm Default 10s (5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
| One Key Control | Intercom, Recording |
| Records Format | SDV, Export MP4 in H.264 Format |
| Records Encryption | Y |
| Records Tag | Y |
| Onvif | Onvif(Profile S) |
| General | |
| Languge | English,Spanish,Korean,Italian,Turkish,Thai,Russian,Polish |
| French,Traditional Chinese,Simplified Chinese，Dutch, Hebrew（UI） | |
| Power Supply | DC12V 3.33A |
| Consumption(without HDD) | ≤ 35W |
| Working Temperature | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19'' Rack Mount 1U Chassis, without Ear Boards, Need Order Extra |
| Dimensions | 49mm×440mm×277mm |
| Weight | 2.3KG (without HDD), 4KG (with Packing Box) |
Bảo hành : 12 Tháng
