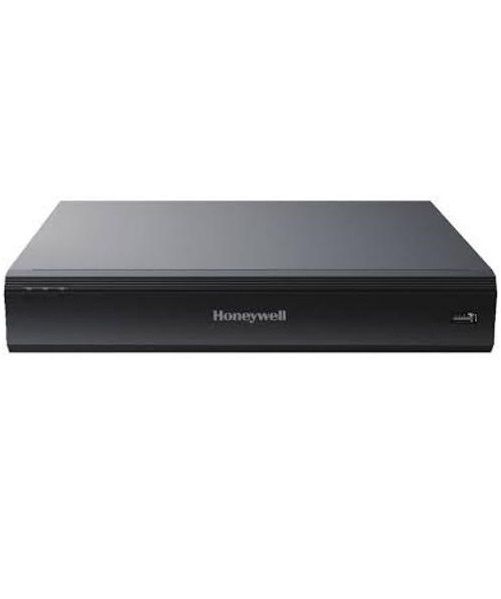

Đầu ghi hình camera IP 4 kênh HONEYWELL HEN04003V
- Đầu ghi hình camera IP 4 kênh.
- Hệ điều hành: Embedded LINUX.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG/MPEG4.
- Chế độ ghi hình: 8 MP(3840 × 2160); 6 MP (3072 × 2048); 5 MP (2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); CIF (352 × 288 / 352 × 240).
- Tốc độ ghi hình: 1~15 fps (12 MP and 8 MP); 1–25/30 fps.
- Số kênh audio 1 channel input; 1 channel output; RCA.
- Chế độ xem lại: 1/4 (maximum 4-ch @ 8 MP).
- Tương thích với tín hiệu ngõ ra: 1 HDMI; 1 VGA.
- Hỗ trợ 4 kênh PoE.
- Hỗ trợ 1 SATA dung lượng 10TB.
- Alarm Input/Output: 4 kênh/2 kênh.
- Cổng mạng: 1 x RJ45 (10/100/1000Mbps).
- Hỗ trợ 128 User cùng lúc.
Thông số kỹ thuật
| Model | HEN04003V |
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Video | |
| Input | 4 channels IP |
| Audio | |
| Audio Input/Output | 1 Channel Input/1 Channel Output, RCA |
| Two-way Communication | Supported |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 |
| Display Split | 1/4 |
| OSD | Camera title; time; video loss; camera lock; Motion detection; recording |
| Recording | |
| Compression | H.265/H.264 |
| Resolution | 8 MP (3840 × 2160); 6 MP (3072 ×2048); 5 MP (2560 × 1920); 4 MP (2560 × 1440); 3 MP (2048 × 1520); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 ×576/704 × 480); CIF (352 × 288 / 352 × 240) |
| Frame rate | 1~30 fps (8 MP); 1~25 / 30 fps (rest of the resolutions) for each channel |
| Record bit rate | 80Mbps |
| Bit Rate | 16 Kbps ~ 20 Mbps, per channel |
| Recording mode | Schedule (regular / continuous, motion detection, alarm); manual; stop |
| Recording interval | 1 to 120 minutes (default 60 min) |
| Pre-event recording interval | 1 to 30 seconds |
| Post-event recording interval | 10 to 300 seconds |
| Video Detection and Alarms | |
| Trigger Events | Recording; PTZ; Tour; Alarm; Video Push; Email; FTP; Snapshot; Buzzer, Screen Tips |
| Video Detection | Motion Detection – MD Zones: 396 (22 × 18); Video Loss; Tampering |
| Alarm Input | 4 channels only for units with 2 HDD |
| Relay Output | 2 channels only for units with 2 HDD |
| Storage | |
| Internal HDD | 1 SATA III ports, single up to 10 TB |
| Playback and Backup | |
| Sync Playback | 1/4 |
| Decoding | 2 ch in 8 MP@30 fps or 8 ch in 1080p @30 fps |
| Search Mode | Time / date; alarm; motion detection (MD); exact Search (accurate to a second); smart search |
| Playback Function | Play; pause; stop; rewind; fast play; slow play; next file; previous file; next camera; previous camera; full screen; repeat; shuffle; backup selection; digital zoom |
| Backup Mode Compatibility | USB Device; Network |
| Network | |
| Supported Protocols | HTTP, HTTPS, TCP/IP, IPv4/Ipv6, UpnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P |
| Ethernet | 1 RJ-45 port (10/100/1000 Mbps) |
| PoE | 4 ports (802.3af/at) |
| Max. Number of Users | 128 Users |
| Network throughput | Incoming: 80 Mbps Outgoing: 60 Mbps |
| Smart Phone Compatibility | iPhone; iPad; Android |
| Auxiliary Interface | |
| USB | 2 (2 USB2.0) |
| Others | |
| Power Supply | DC 48 V / 53 V, 1.25 A / 1.13 A |
| Power consumption | 10W (Without HDD) |
| PoE | max 25.5W for single port, 36W in tota |
| Dimensions | compact 1U, 260.2 mm x 225.0 mm x 50.3 mm |
| Weight | 0.8kg (without HDD) |
- Bảo hành: 24 tháng.
