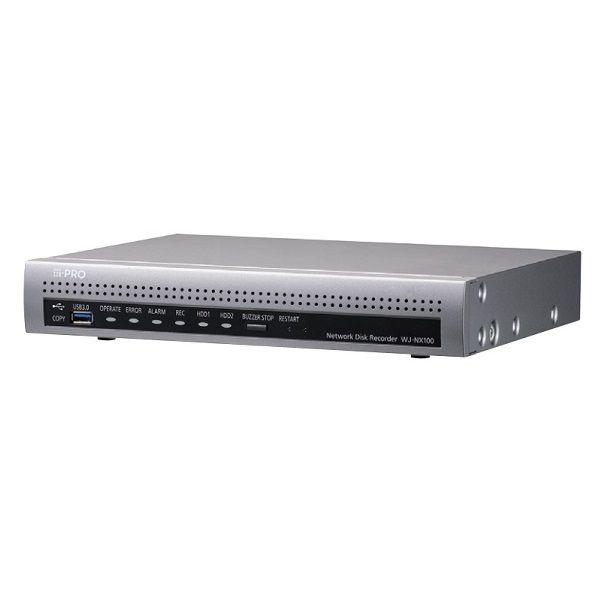

Đầu ghi hình camera IP 4 kênh I-PRO WJ-NX100/2E
- I-PRO WJ-NX100/2E là đầu ghi hình hỗ trợ 4 kênh camera IP đầu vào.
- Chuẩn nén hình: H.265, H.264, JPEG.
- Giảm thiểu tối đa không gian lưu trữ với công nghệ nén H.265 và Smart Coding.
- Tương thích với ngõ ra: 1 ngõ chuẩn HDMI (4K/FHD), 01 ngõ chuẩn BNC.
- Hỗ trợ 2 khe ổ cứng với dung lượng 2TB cho mỗi ổ.
- Nguồn điện: 100 VAC to 240 VAC, 50 Hz/60 Hz.
Thông số kỹ thuật
| Supported Camera | |
| Compatible vendor | i-PRO series Network cameras, ONVIF NVT conformant camera and encoder |
| Supported Image Format | H.265(HEVC), H.264, JPEG |
| Supported Image Resolution (Depending on the camera) | •Aspect ratio [4 : 3] 4000x3000, 3072×2304, 2560x1920, 2048x1536, 1280x960, 800x600, 640x480 |
| •Aspect ratio [16 : 9] 3840x2160, 3072×1728, 2560x1440, 1920x1080, 1280x720, 640x360 | |
| •Aspect ratio [1 : 1] 2992x2992, 2816x2816, 2192×2192, 2048x2048, 1280x1280 | |
| •Aspect ratio [9 : 16] 2160x3840, 1728x3072, 1440x2560, 1080x1920, 720x1280, 360x640 | |
| Supported Audio Format | G.711 for Onvif, G.726 (ADPCM) 32 kbps, AAC-LC |
| Maximum Number of Cameras | MAX. 4 |
| Recording | |
| Recording Mode | Event, Schedule, Emergency |
| Pre-alarm Recording | Up to 15 seconds *When the delivery speed from the network camera is less than 4 Mbps |
| Sub-stream Recording | 64 / 128 / 256 / 384 / 512 / 768 kbps |
| Scheduled Recording Mode | 4 programs, 6 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera | Up to 60 fps (Depending on the camera) |
| Main Unit Functions | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus, Aux, Wiper (for WV-SUD638) |
| Multiscreen Mode | [Main monitor] • Control screen 4 split screen display • Wide view screen 2 / 3 / 4 split screen display,1 screen sequence [Sub monitor] 1 screen sequence, 4 split screen display |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s), Time-saving playback |
| Search Mode | Search criteria: Time date, Playback by designating a timeline, VMD, Thumbnail |
| Copy | File Format: Original Format / MP4 Recorded data of selected cameras and time date range can be copied to USB storage. |
| Camera Title | Up to 16 Characters |
| Clock Display | Time : 12H/24H, Date : 5 formats |
| Digital Zoom | Live / Play: 1.25x 1.5x 1.75x, 2x, 2.5x, 3x, 3.5x 4x, 5x, 6x, 7x, 8x (only for 1-screen or 4-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| System Setup | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Traditional Chinese, Japanese |
| 360 Camera Dewarp | Only 1ch display mode. |
| re-encoding | 2Client |
| SD Memory Data Download | Images recorded in the SD card in the i-PRO series cameras can be transferred to the recorder automatically. (H.265/H.264) |
| Browser GUI | |
| Camera Control | Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, , Aux, Wiper (for WV-SUD638 |
| Playback Control | PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Go to Date, Go to Last (30 s) |
| Search Mode | Search criteria: Time date, Event type, VMD, Camera number |
| Display Mode | 1 / 4 screen |
| Image Download | File Format: Original Format / MP4 Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. |
| Copy | File Format: Original Format / MP4 Recorded data of selected cameras and time date range can be copied to USB storage |
| Camera Title | Up to 16 characters |
| Clock Display | On the browser. Time: 12H/24H, Date: 5 formats |
| Alarm Control | Reset |
| Digital Zoom | Live/Play: 2x, 4x (only for 1-screen) |
| System Log | Operator access (500), Network error (100), Error (1,000), Event (1000), Operation (500) |
| GUI Language | Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Thai, Simplified Chinese, Traditional Chinese, Japanese |
| Required PC | CPU: Intel® Core™ i7-860 or faster, RAM : 4 GB or more, VRAM: 128 MB or more (Min. 64 MB), Microsoft® DirectX® 9.0c or later |
| Alarm/Event | |
| Alarm Source | 2x Terminal inputs, 4x Camera alarms (TCP alarm notification), 128x Command alarms |
| Event Mode | Off / On |
| Alarm Action | Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, TCP alarm notification output, Buzzer, Indicator |
| Alarm Control | Reset |
| Event log | 1000 |
| Input/Output | |
| Spot Output Connector | 1x 1 V [p-p] / 75 Ω (BNC) NTSC /PAL (selectable in setup menu) |
| Monitor (HDMI) Connector | [Main monitor] HDMI 4K UHD(3840x2160p) /30Hz, 4K UHD(3840x2160p) /25Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1920x1080i /60Hz, 1920x1080i /50Hz |
| Alarm / Control Terminal | Alarm: Alarm input 1 - 2*1, Alarm output*2 |
| Control: Time adjustment input/output*1, +5 V output*3, Emergency recording input, Face matching output*4 | |
| Error / Warning: HDD error / Recording error output*2, Camera error output*2 | |
| Mouse Connection Port | 1 (USB 2.0) |
| Network Port (PC) | 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45) |
| Network Port (Camera) | 4x 10BASE-T / 100BASE-TX(RJ45), PoE(IEEE802.3af compliant), PoE Budget (61.6W, 4x 15.4W/port) |
| USB Storage | USB 3.0 / USB 2.0 memory, USB 3.0 / USB 2.0 connected HDD (except bus powered device) |
| Network | |
| Network Interface | 10BASE-T / 100BASE-TX / 1000BASE-T (RJ45) |
| Maximum Recording Rate | 96 Mbps or less |
| Maximum Band Width | Total 192 Mbps or less |
| Supported Protocol | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, RTP, RTSP, ICMP, ARP IPv6: ICMPv6 |
| Upon Alarm or Warning | |
| No. of Simultaneous Users | 16 or less |
| User Registration | Up to 32 users |
| User Level | 3 Levels (Programmable) |
| Partitioning | User level - Camera (View & Control, No Access) |
| Security Method | User authentication (ID and Password), Host authentication, Alteration detection, SSL/TLS |
| Other Functions | |
| Time Synchronization | Terminal (Slave), NTP (Server/Client) |
| Summer Time | User definable (using menu setup) |
| Remote Monitoring on Smartphone/Tablet | 16 clients or less *5 |
| HDD | |
| Type | 2.5 inch Serial ATA HDD, Up to 2x HDDs can be installed. |
| Maximum Capacity | Up to 4 TB will be supported.*6 (Installed HDD : 2 TB x 1) |
| RAID | RAID 1 |
| Viewer Software | |
| Playback Control | PLAY, Rev PLAY, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Additional Functions | NX Viewer: Alteration detection, Save as JPEG, Two times zoom, Print, Copy, Aspect ratio switching, fish eye correction, corridor display |
| Supported OS, Language | Language of the software will be English or Japanese |
| General Specifications | |
| Safety / EMC Standard | cUL (UL62368-1 3Ed), FCC Part15 ClassA CE (EN62368-1, EN55032 ClassB, EN55035) |
| Power Source | 100 V AC to 240 V AC 50 Hz/60 Hz (included AC power adapter) |
| Power Consumption | DC48 V 1.875 A approx.81.6 W |
| Ambient Operating Temperature | Main body: +5 °C to +45 °C (41 °F to 113 °F) Mouse (provided) : +5 °C to +40 °C (41 °F to 104 °F) |
| Ambient Operating Humidity | 5 % to 90 % (without condensation) |
| Maximum Operating Altitude | 2,000 m (6,562 feet) above sea level |
| Dimensions | 280 mm(W) x 44 mm(H) x 212 mm(D) |
| Mass (approx.) | When a HDD is installed: 1.9 kg (4.4 lb) When 2 HDD are installed: 2.0 kg (4.6 lb) |
- Bảo hành: 12 tháng.
