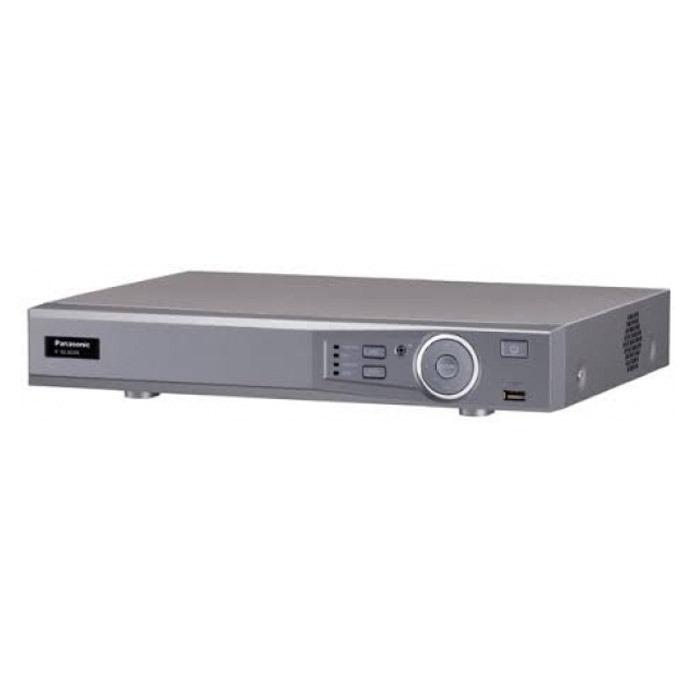

Đầu ghi hình camera IP 4 kênh PANASONIC K-NL404K/G
- Đầu ghi hình IP 4 kênh PoE.
- Chuẩn nén hình ảnh: H.264/H.265.
- Băng thông: Max 80 Mbps.
- Hỗ trợ 2 cổng USB 2.0.
- Định dạng Audio: G.711, G.711μ, G.726, PCM.
- Hỗ trợ độ phân giải: 5 MP, 4 MP, 3 MP, 1080P, 1.3 MP, 720 P, D1…
- Bit Rate: 16 Kbps - 20 Mbps Per Channel.
- Audio: 1 Channel Input, 1 Channel Output, RCA.
- Tương thích với tín hiệu ngõ ra: 1 HDMI (up to 3840×2160), 1 VGA.
- Hỗ trợ 1 cổng SATA III dung lượng 8TB.
- Cổng mạng: 1 RJ45 Port (10/100 Mbps).
- Hỗ trợ 128 người sử dụng.
Đặc tính kỹ thuật
| Model | K-NL404K/G |
| Supported Camera | |
| Compatible vendor | Only E-Series camera |
| Image Format | H.265/ H.264 |
| Audio Format | G.711, G.711μ, G.726, PCM |
| Image Resolution | 5 MP, 4 MP, 3 MP, 1080 P, 1.3 MP, 720 P, D1 |
| Video/Audio | |
| IP Camera Input | 4 channels |
| Audio | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI (up to 3840×2160), 1 VGA |
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split | 1/4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Maximum Bandwidth | Total 80 Mbps or less |
| Bit Rate | 16 Kbps - 20 Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm), Stop |
| Record Interval | Recording duration: 1 - 120 min (default: 60 min), Pre-record: 1 - 30 sec, Post-record: 10 - 300 sec |
| Video Detection & Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Playback & Backup | |
| Sync Playback | 1/4 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuf‑e, Backup Selection, Digital Zoom |
| Backup Mode | USB Device / Network |
| Network | |
| Network Interface | 1 RJ45 Port (10/100 Mbps) |
| Ethernet Port | 1 Independent 100 Mbps Ethernet Port |
| PoE | 4 ports (IEEE802.3at/af) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android™ |
| Storage | |
| Internal HDD | 1 SATA III Port, Up to 8 TB capacity for each HDD |
| External Interface | |
| USB | 2 USB Ports (2 USB 2.0) |
| General | |
| Power Supply | DC48 V/1.5 A |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 325 (W) × 255 (D) × 55 (H) mm |
| Weight | 1kg |
- Bảo hành: 12 tháng.
