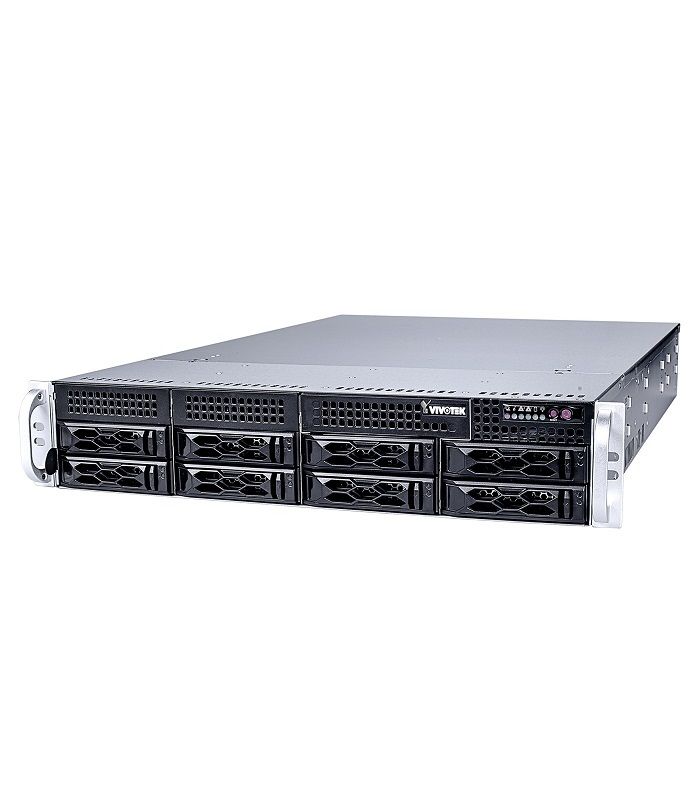

Đầu ghi hình camera IP 64 kênh Vivotek NR9681-V2
- H.265/H.264 Compression Technology
- 64-CH Recording, 64-CH Display
- 8 Hot-Swappable HDD Bays
- Support RAID 0/1/5/6/10 Storage
- Redundant Power
- Dual LAN Giga Network Ports
- Multiple Fisheye Dewarp Support
- VIVOTEK VAST 2 Inside
- Smart Search II: People/Vehicle Search
- Analytics Integration: Smart VCA, Parking Violation/Restricted Zone Detection
- Cybersecurity Management Solution
- Comprehensive VIVOTEK Solution Support
Specifications
| Model | NR9681-v2 |
| OS | Embedded Windows 10 |
| Watchdog | Hardware + Software |
| Power Restoration | System restart automatically after power recovery |
| Local Display | |
| LiveView Display | 64 Channels Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single lay out display, full screen display, custom lay out, lay out rotation |
| Video Output | HDMI x1, Display Port x1 |
| Display Resolution | HDMI: 4096x2160 DP: 4096x2304 |
| Dual Monitor | Supported |
| Camera Position | Change the v iewcell position on the Liv e View screens |
| Stream Application | Stream Selection & Auto Stream Size |
| Monitor Enhancement | E-Map Embedded, Drag & Drop, Remote I/O Control, PiP (Digital Zoom), Instant Play back, Video Display Mode (Aspect Ratio & Camera Inf ormation), Metadata Display (VCA, POS and Data Magnet) |
| Fishey e Dewarp | 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R and Fishey e Auto-Pan |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Video | |
| Video Format | MJPEG, MPEG4, H.264 AVC, H.264 SVC, H.265 |
| Graphic Decoder | Sof tware decoding |
| Decoding Resolution | Up to 8192x8192 |
| Decoding Capability | H.264: 1920x1080 @ 540 f ps H.265: 1920x1080 @ 270 f ps |
| Audio | |
| Audio Format | G.711, G.726, AMR, AAC |
| Audio In/Out | Microphone audio jack Input x1 3.5 Line input audio jack x1 3.5 Line output audio jack x1 |
| 2-way Audio | Supported |
| Record | |
| Recording Time (sec.) | Pre-Record: 3-15 Post-Record: 10-60 |
| Recording Stream | Single |
| Recording Throughput | 512Mbps |
| Recording Mode | Continuous, Ev ent, Customized Schedule, Activ ity Adaptiv e Streaming |
| Recording Setting | Recycling time depends on the remaining storage space or the set number of days |
| Watermark | Supported |
| Seamless Recording | Supported |
| Storage & Backup | |
| HDD Devices | Hot-Swappable Tray x8 |
| RAID | RAID 0, 1, 5, 6, 10 |
| Disk Management | Create, format and remov e disk |
| Video Clip Export | USB Dongle (FAT Format) NAS (SMB & CIFS) |
| Schedule Backup | NAS (SMB & CIFS) |
| Playback | |
| Playback Display | 64 Channels Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single lay out display, full screen display, custom layout, layout rotation |
| Playback Control | Play, rewind, pause, stop, next/previous video start, next/previous frame, 1/8X ~ 64X speed control, bookmark |
| Video Search | Calendar, Ev ent, Alarm, Bookmark, Thumbnail, Smart Search II, Transaction (POS), Data Magnet, Log |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | BMP & JPEG |
| Video Clip Exp | 3GP & EXE |
| Network | |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Video Throughput for Remote Client | 400 Mbps |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| Alarm Management | |
| Alarm Period (sec.) | Max. 30 |
| Alarm Filter | Time, Trigger Type (Camera/Substation/Sy stem), Status, Name, Trigger Source |
| Alarm Setting | Realtime Sy stem Notif ication Alarm Result Display by List or Thumbnail |
| Schedule Ty pe | Continuous, schedule, manual |
| Camera Event | General: Motion detection, Camera DI, Camera DO, IR (Inf rared), PIR (Passiv e inf rared), Tampering detection, Temperature, Camera disconnected, Recording error, Stop recording, Video loss (Video serv er only ), SD card lif e expectancy detection, Audio detection, Shock detection Smart VCA: Line crossing detection, Intrusion detection, Loitering detection, Face detection, Missing object detection, Unattended object detection, Crowd detection, Runninge Detection Trend Micro IoT Security : Brute f orce attack, Cy berattack, Quarantine ev ent |
| eMap | |
| Source | Import picture & folder |
| Device | Camera, external DI/O |
| Marked | Add, remove, direction control, PTZ control, FOV control, live view & play back |
| Event Notification | One or More Live Streaming |
| External Interface | |
| USB | USB 3.0 Type- A x3 USB 3.0 Type-C X1 |
| Audio | Microphone audio jack Input x1 3.5 Line input audio jack x1 3.5 Line output audio jack x1 |
| System | |
| POS Integration | Supported |
| UPS Integration | Supported |
| Camera Integration | ONVIF Profile S |
| Log | Operation, system and event log |
| Date & Time | Sync server |
| Advanced Features | |
| VCA Counting Solution | Supported |
| LPR Solution | Supported |
| VCA Event Search | Supported |
| Smart Search | Smart Search I & Smart Search II |
| Cybersecurity Management | Supported |
| Failover | Supported |
| Remote Client | |
| Software AP | Shepherd, VAST 2 |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Internet Explorer 9 (32 bit) or above |
| General | |
| Power Input | Redundant power 100~220V AC |
| Power Consumption | Max. 650 W |
| Redundant Power | Supported |
| Dimensions | 89 (H) x 437 (W) x 647 (D) mm |
| Weight | 15.8 kg (without HDD) |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL |
- Bảo hành: 24 tháng.
