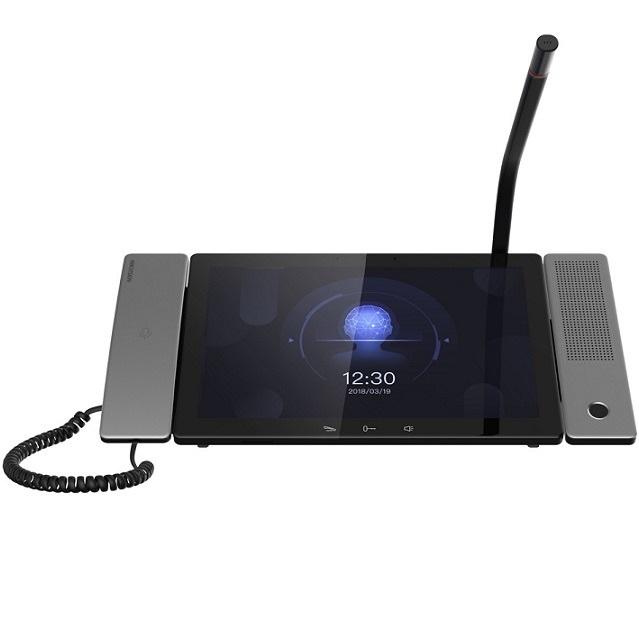

Điện thoại bảo vệ trung tâm HIKVISION DS-KM9503
- Hỗ trợ camera có độ phân giải 1280 x 800.
- Màn hình cảm ứng IPS 10.1-inch.
- Hỗ trợ lên đến 10.000 căn hộ.
- Tích hợp sẵn Mic và Loa + tay cầm thoại.
- Cổng kết nối: 1 cổng RJ45 10/100Mbps, 1 cổng RS-485, 3 cổng USB 2.0.
- Hỗ trợ xem trực tiếp màn hình căn hộ hoặc camera IP, gán tối đa 128 camera IP.
- Hỗ trợ tính năng mở cửa từ xa.
- Hỗ trợ chế độ rảnh tay.
- Kích thước: 292 × 166 × 31 mm.
- Nguồn điện: PoE/ 12VDC.
Đặc tính kỹ thuật
| Model | DS-KM9503 |
| System parameters | |
| Operation system | Android 7.1 |
| ROM | 8GB |
| RAM | 2GB |
| CPU | Embedded processor |
| Display Parameters | |
| Size | 10.1-inch |
| Operation Method | Capacitive touch screen |
| Type | IPS |
| Resolution | 1280 × 800 |
| Device interfaces | |
| Alarm input | 2 |
| Network interface | 2 |
| TAMPER | 0 |
| RS-485 | 1 |
| USB | 3 |
| TF card | Max to 128 G |
| Lock control | 2 Relay output |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm) |
| Audio compression standard | G.711U, G.711A |
| Audio output | Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable via software |
| Capacity | |
| Linked network camera capacity | 128 |
| SIP access | 10000 |
| Network parameters | |
| Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | 2 10/100/1000 M self-adaptive Ethernet |
| General | |
| Button | 3 touch buttons |
| Installation | Table mounting & Wall mounting |
| Indicator | 3 |
| Weight | 1.285 kg |
| Working temperature | -10°C to 50°C |
| Working humidity | 10% to 90% |
| Dimensions | 292 × 166 × 31 mm |
| Power supply | Standard PoE (LAN1)/ 12 VDC |
| Application environment | Indoor |
| Power consumption | ≤ 12W |
- Bảo hành: 24 tháng.
