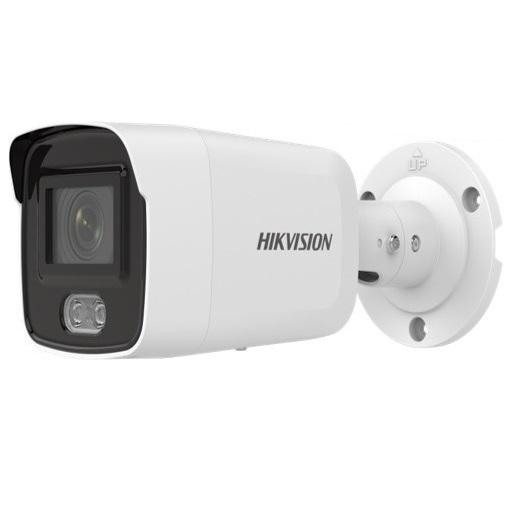

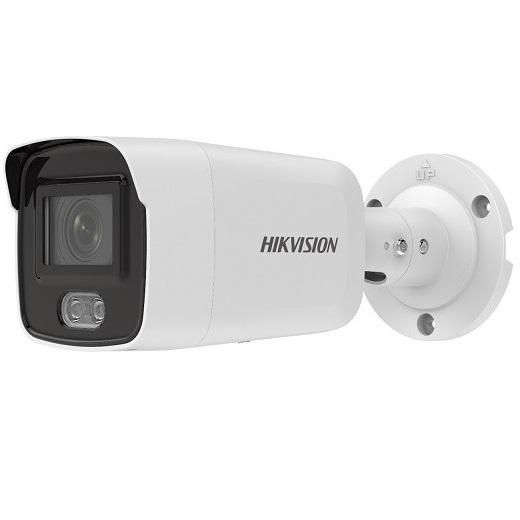

Camera IP COLORVU 2.0 Megapixel HIKVISION DS-2CD2027G1-L
- Camera 2MP ColorVu có màu ban đêm.
- Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265+, H264+.
- Độ nhạy sáng cực thấp 0.0035 @ F1.0 (1/30s, AGC ON).
- Đèn ánh sáng trắng lên đến 30 mét.
- Hỗ trợ chức năng chống ngược sáng thực 120dB WDR.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | 0.0035 @ F1.0 (1/30 s, AGC ON), 0 Lux with LED on |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| DNR | 3D DNR |
| Lens | |
| Lens | 2.8/4/6 mm |
| Aperture | F1.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 112°, vertical FOV: 57°, diagonal FOV: 138° 4 mm, horizontal FOV: 89°, vertical FOV: 47°, diagonal FOV: 106° 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 63° |
| Lens Mount | M16 |
| Illuminator | |
| White Light Range | 30m |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| SVC | Yes |
| Smart Feature-Set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Region Of Interest | Support 1 fixed region for main stream |
| Image | |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Network | |
| Network Storage | Support micro SD/SDHC/SDXC card (128 G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
| Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| General | |
| Firmware Version | V5.5.53 |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masks, IP address conflict, flash log |
| Reset | Yes |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Supply | 12 VDC ± 20%, PoE: 802.3af |
| Power Consumption And Current | 12VDC, 0.4 A, max. 5 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 6.5 W |
| Material | Camera body: Front cover: plastic, back cover: metal,Bottom base: plastic |
| Dimensions | 85 × 85 × 218 mm (3.3' × 3.3' × 8.6') |
| Weight | 0.680 kg (1.5 lb.) |
| Interface Protection | IP67 |
| Compression Standard | |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
- Bảo hành: 24 tháng.
