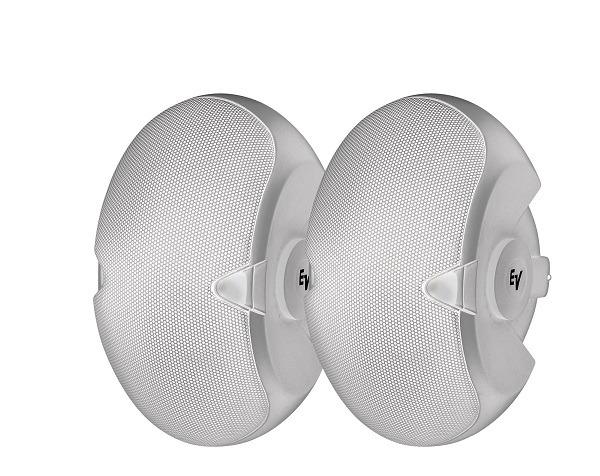

Dual 3.5-inch 2‑way Surface-Mount Loudspeaker ELECTRO-VOICE EVID 3.2W
- Ultra-compact full range.
- Ideal for restaurants, bars, patios, and retail.
- Vented LF enclosure.
- 0.75-inch titanium diaphragm HF driver with neodymium magnetic structure.
- Full-bandwidth overload protection (LF and HF).
- Elliptical weather-resistant ABS enclosure.
- Paintable black or white finish.
- Magnetically shielded for video applications.
- Strong-Arm Mount for easy, flexible aiming.
- Color: White.
- Frequency Range (-10 dB): 85 - 20000kHz.
- Weight Net: 52.91oz (1500g).
Specifications
| Model | 3.2W |
| Frequency Range (-10 dB) | 85 - 20000kHz |
| Weight Net | 52.91oz (1500g) |
| Depth | 6.5-inch (165mm) |
| Width | 5-inch (127mm) |
| Height | 9.21-inch (234mm) |
| Available Color | White |
| Chassis Size | 3.5-inch (88.9mm) |
| Coverage (Nominal -6 dB) H | 140° |
| Coverage (Nominal -6 dB) V | 100° |
| HF Transducer | 0.75-inch |
| Input Connections | Spring Terminal |
| LF Transducer | Two 3.5-inch |
| Max. SPL/1m (calc) | 112dB |
| Minimum Impedance | 6Ω |
| Nominal Impedance (Passive) | 8Ω |
| Power Rating | 300W |
| Sensitivity 1 W/1 m | 87dB |
| Speaker Type | Full-Range, Mid-High, Two-Way |
| System Power Handling (Continuous/Program/Peak) | 75//300Watts |
| Transformer Taps (Transformer Version Only) | 70 V: 5 W, 100 V:10 W |
| Weatherized | Yes |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
