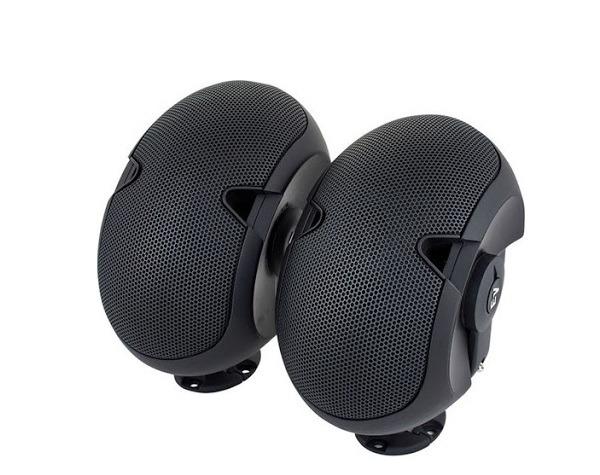

Dual 3.5-inch 2‑way Surface-Mount Loudspeaker ELECTRO-VOICE EVID 6.2T
- Compact full range.
- Ideal for shopping malls, sports bars, and health clubs.
- Vented LF enclosure.
- 1-inch titanium diaphragm HF driver with neodymium magnetic structure.
- Coherent Coverage Waveguide.
- Full-bandwidth overload protection (LF and HF).
- Elliptical weather-resistant ABS enclosure.
- Paintable black or white finish.
- Magnetically shielded for video applications.
- Strong-Arm Mount for easy, flexible aiming.
- 'T' version for 70 or 100 V distributed systems.
- Color: Black.
Specifications
| Model | EVID 6.2T |
| Frequency Response ( z -10 dB) | 62 Hz - 20 kHz |
| Power Handling | 300W Cont. Prog./600W Peak |
| Sensitivity | 94 dB, 1W/1m |
| Impedance | 8 ohms |
| Max SPL | 118 d |
| Horizontal Coverage | 100° |
| Vertical Coverage | 80° |
| Crossover Frequency | 1.6 kHz |
| LF Transducer | 2 x 6' (100 mm) |
| HF Transducer | 1' (25 mm) |
| Protection | Full Syste |
| Weather Resistance | Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings |
| Swing x Rotation | 100° x 90° |
| Terminals | Phoenix Connector |
| Enclosure Material | ABS (paintable) |
| 't' Version Wattage Taps | 70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass |
| Dim (H x W x D) | 16.5 inch x 9 inch x 11.75 inch (419 mm x 228 mm x 298 mm) |
| Net Weight (each) | 12 lbs (5.3kg) |
| Shipping Weight (pair) | 27 lbs (12.3 kg) |
| Included Accessories | SAM, hex key |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
