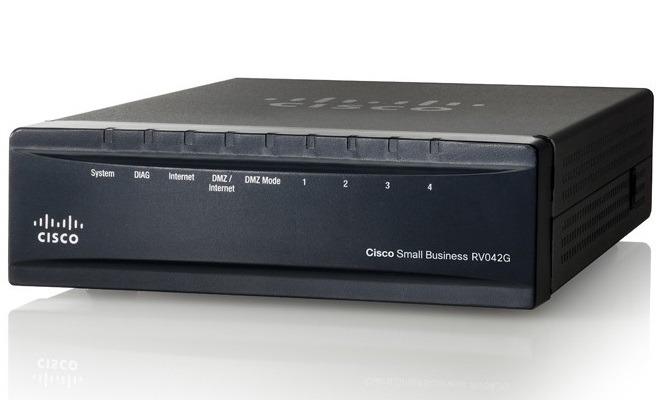

Dual Gigabit WAN VPN Router Cisco RV042G
- Dual Gigabit Ethernet WAN ports for load balancing and business continuity
- Built-in 4-port Gigabit Ethernet switch
- Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption
- High capacity, high-performance, IP Security (IPsec) VPN capabilities
- Intuitive, browser-based device manager and setup wizards.
Specifications | |
Dual WAN | Configurable for Smartlink backup or load balancing |
Standards | • 802.3, 802.3u |
• IPv4 (RFC 791) | |
• IPv6 (RFC 2460) | |
Network protocols | • Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent |
• Static IP | |
• Point-to-Point Protocol over Ethernet (PPPoE) | |
• Point-to-Point Tunneling Protocol (PPTP) | |
• Transparent bridge | |
• DNS relay, Dynamic DNS (DynDNS, 3322) | |
• IPv6 | |
Routing protocols | • Static |
• Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng) | |
Network Address Translation (NAT) | • Port Address Translation (PAT) |
• Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT | |
Protocol binding | Protocols can be bound to a specific WAN port for load balancing |
Network edge (DMZ) | DMZ port, DMZ host |
Security | |
Firewall | SPI, denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hacker attack |
Access rules | Up to 50 entries |
Port forwarding | Up to 30 entries |
Port triggering | Up to 30 entries |
Blocking | Java, cookies, ActiveX, HTTP proxy |
Content filtering | Static URL blocking or keyword blocking |
Secure management | HTTPS, username/password, password complexity |
VLAN | Port-based VLANs |
VPN | |
IPsec | 50 IPsec site-to-site tunnels for branch office connectivity |
QuickVPN | 50 QuickVPN tunnels for remote client access |
PPTP | 5 PPTP tunnels for remote access |
Encryption | Data Encryption Standard (DES), Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption; AES-128, AES-192, AES-256 |
Authentication | MD5/SHA1 authentication |
IPsec NAT traversal | Supported for gateway-to-gateway and client-to-gateway tunnels |
VPN pass-through | PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec |
Advanced VPN | Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup |
Quality of Service (QoS) | |
Prioritization types | Application-based priority on WAN port |
Service-based QoS | Supports rate control or priority |
Rate control | Upstream/downstream bandwidth can be configured per service |
Priority | Each service can be mapped to one of 3 priority levels |
Performance | |
NAT throughput | 800 Mbps |
IPsec VPN throughput | 75 Mbps |
Configuration | |
Web user interface | Simple browser-based device manager (HTTP/HTTPS) |
Management | |
Management protocols | Web browser, Simple Network Management Protocol (SNMP) v1 and v2c, Bonjour |
Event logging | Syslog, email alerts, VPN tunnel status monitor |
Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
Product dimensions (W x H x D) | 5.12 in. x 1.52 in. x 7.87 in. |
130 mm x 38.5 mm x 200 mm | |
Ports | Four 10/100/1000 RJ-45 ports, one 10/100/1000 RJ-45 Internet port, |
one 10/100/1000 RJ-45 DMZ/Internet port | |
Power supply | 12V 1A |
Certification | FCC Class B, CE Class B, UL, cUL, CB |
- Bảo hành: 12 tháng.
