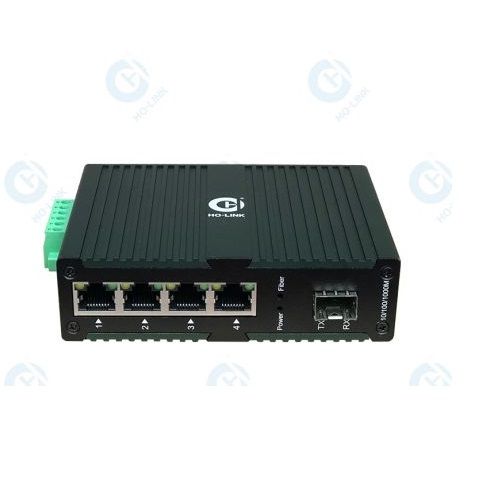

Bộ chuyển đổi quang công nghiệp 10/100/1000Mbps HO-LINK HL-IES-1GX4GT-SFP
- Switch quang công nghiệp 4 cổng 10/100/1000M (4 cổng đồng, 1SFP 1.25G).
- Port: 4 x 10/100/1000M + 1 x 1000M Port SFP Industrial.
- Nhiệt độ: -40°C đến 85°C.
- Nguồn cấp vào: 12V~52VDC.
Thông số kỹ thuật
| Standards | IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab for 1000base-T IEEE 802.3z for 1000base-X IEEE802.3x flow control and back pressure IEEE802.1d spanning tree |
| Copper port | Data Rate: 10/100/1000M Connector: RJ45 Distance: 100m |
| Fiber port | SFP |
| Performance | Processing Type: store and forward Back Bandwidth: 10Gbps MAC Address Size: 2Kbits Packet Buffer Size: 1Mbit Frame: 10Kbytes Time Delay: <10us |
| LED indicators | Power: ON=Power connected 1~4: ON=Copper connected Fiber: ON=Fiber connected |
| Electrical&Mechanical | Input Voltage: 12~52 VDC,redundant power inputs Protection: overload current; reverse polarity Power Connector: terminal block Dimension: 174*147*55mm; Weight: 0.4kg; |
| Environmental | Operating Temperature: -40℃~85℃ Storage Temperature: -40℃~85℃ Relative Humidity: 5%~95 (non-condensing) MTBF: 100000 hours |
- Bảo hành: 24 tháng.
