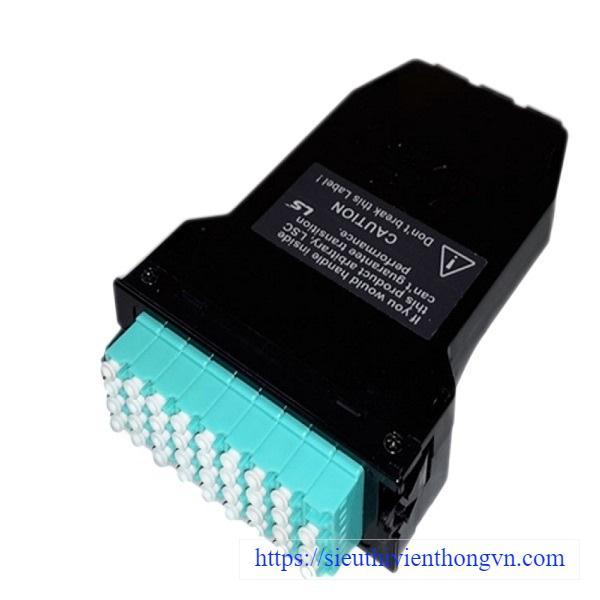

Hộp chứa đầu nối quang-Cassette Module (MCM) LS 6 đầu đôi Multimode OM4 LC
- Part Number: LS-MCM-LC-DP-12-M4.
- Hộp MPO/MTP chứa 6 đầu đôi.
- Số cổng kết nối: 12 cổng.
- Đầu kết nối: LC.
- Kiểu sợi quang: Multimode OM4.
- Kết nối với 1 sợi cáp đã gia công sẵn.
Description
- The MPO/MTP Cassette Modules are installed with terminated MPO/MTP trunk cables and patch cords. The cassette includes the plastic case, adaptor plate, MPO/MTP fan-out cord and other necessary materials for the arrangement of optical fiber cables. It is installed on LS Simple Fast-NetTM Empty Panel (PPP-) and Modular FDF.
- They are pre-terminated and pre-tested in the factory with MPO/MTP fan-out cords, which guarantee the high performances.
Application
- Telecommunication network, Data Center.
- Data Processing Systems.
- LAN and WAN (IEEE 802.3ba, 100BASE-FX, 10GBASE-LX4, 10GBASE-ER/EW, 40GBASE-LR4, 100GBASE-ER4 etc.).
- Fiber Optic Test & Measurement System.
Technical
- Based on IEC 61754-7 MPO/MTP type Connector.
- Fiber types: Multi-mode.
- Insertion Loss & Return Loss is based on ANSI/TIA-568-C.3.
- MPO/MTP connector insertion loss ≤ 0.35dB (low-loss).
- LC connector insertion loss ≤ 0.2dB (SM), 0.3dB (MM).
- Class OF-300 channel support.
- Operating temperature: 0℃~70℃.
- Material: Plastic UL 94 V-2 above.
- Dimension: 112 x 149 x 37mm.
- Connection Polarity is based on ANSI/TIA-568-C.3.
- Sản xuất tại Hàn Quốc.
