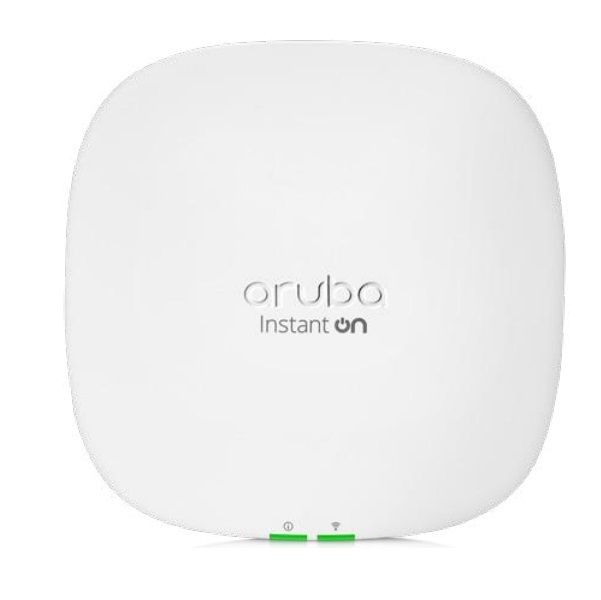

HP Aruba Instant On AP25 4x4 Wi-Fi 6 Indoor Access Point
- The Aruba Instant On AP25, a 4x4 Wi-Fi 6 access point, is designed to meet the increasing volume of connected devices. Delivering superior performance, coverage, and speed at a competitive price, the AP25 is the perfect access point for small and growing businesses.
Key Features
- Ultra-fast 802.11ax, 4x4:4
- 2.5 Gigabit Ethernet uplink port
- 160MHz client bandwidth support
- Mesh backhaul operating at 160MHz
- Wi-Fi CERTIFIED 6TM (Wi-Fi 6)
- MU-MIMO performance
- Smart mesh Wi-Fi support
- Integrated Bluetooth
- Easy-to-use web and mobile app for setup and management
- Secure guest Wi-Fi with simple setup
Specification
| Radios | Dual radio for simultaneous dual-band operation 5 GHz 802.11ax 4x4 MIMO for up to 4.8 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6) |
| Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements) | 5GHz band: +24dBm (+18dBm per chain, 6dB MIMO gain) 2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain) |
| Interfaces | Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at) DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot |
| Physical specifications | 200mm x 200mm x 45mm, excluding mount accessories Weight: 775g |
| Power | Power over Ethernet (POE): 802.3at (class 4) Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options. |
| Antennas | Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz (of the effective, combined pattern for both antennas in each band) |
| Mounting | The access point ships with a white mount clip that can attach to both walls and ceilings Mounts that match the design of the Aps can be purchased separately |
| Environmental & reliability | Operating temperature: 0° C to +40° C (+32° F to +104° F) MTBF: 670khrs (76yrs) at +25° C |
| Industry certifications | EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Management options | Instant On mobile application (Android & iOS) Cloud Portal: Portal.ArubaInstantOn.com |
- Bảo hành: 12 tháng.
