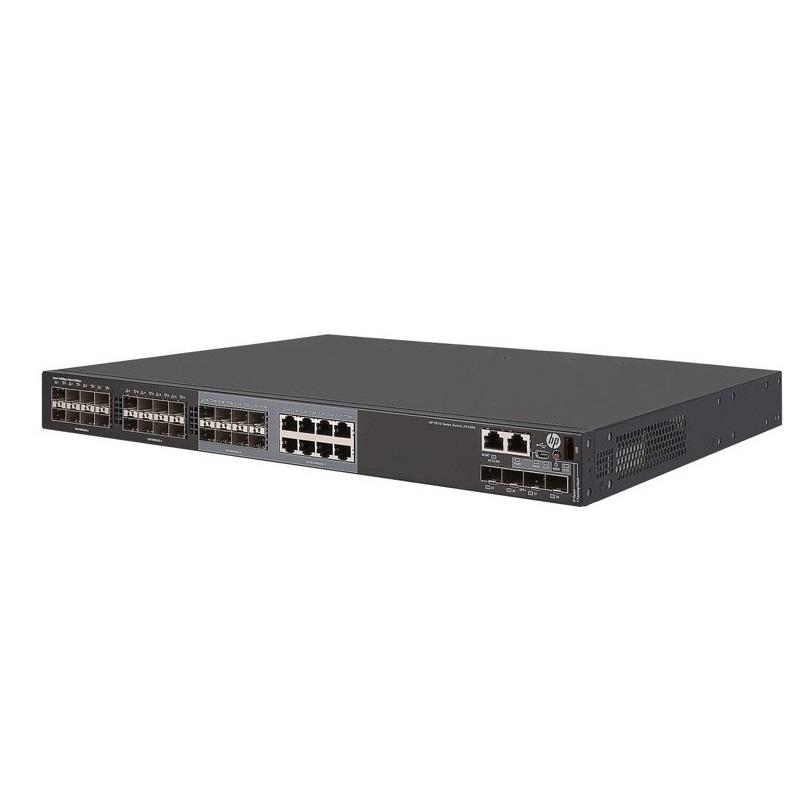

HP FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch JH149A
The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. JH149A supports 24 x SFP+ Gigabit ports, 4x 10GbE SFP+ ports, and one expansion slot.
Features
Layer 2 switching
- GARP VLAN Registration Protocol allows automatic learning and dynamic assignment of VLANs.
- 32K MAC addresses provide access to many Layer 2 devices.
- Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping.
- 10GbE port aggregation.
- VLAN support and tagging supports the IEEE 802.1Q (4094 VLAN IDs).
Layer 3 services
- Address Resolution Protocol (ARP).
- Dynamic Host Configuration Protocol (DHCP).
- Loopback interface address.
Layer 3 routing
- IPv4 routing protocols: Support static routes, RIP, OSPF, ISIS, and BGP.
- IPv6 routing protocols: Provide routing of IPv6 at wire speed; support static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+ for IPv6.
Security
- Provide IP Layer 2 to Layer 4 traffic filtering; support global ACL, VLAN ACL, port ACL, and IPv6 ACL; up to 3K ingress ACLs and 1K egress ACLs are supported.
- Support Port security, Secure FTP/ SCP, STP BPDU port protection, DHCP, Spanning tree, RADIUS/HWTACACS, Secure management access,…
Specifications
| Model | JH149A |
| Ports | 16 fixed Gigabit Ethernet SFP ports 8 Combo GbE (SFP and RJ45) dual personality 1000 Mbps port 4 SFP+ 10GbE ports |
| Additional ports and slots | 1 dual-personality serial console port 1 RJ-45 out-of-band management port 1 USB 2.0 |
| Power supplies | 2 power supply slots 1 minimum power supply required |
| Flash | 512 MB |
| RAM | 2 GB SDRAM |
| Packet buffer size | 4 MB |
| Latency | 1000 Mb Latency: < 5 μs 10 Gbps Latency: < 3 μs |
| Throughput | 214 Mpps |
| Routing/Switching capacity | 288 Gbps |
| Routing table size | 32768 entries (IPv4), 16384 entries (IPv6) |
| MAC address table size | 32768 entries |
| Voltage | 100–240 VAC |
| Maximum power rating | 120W |
| Operating temperature | 0°C to 45°C |
| Operating relative humidity | 10% to 90%, noncondensing |
| Dimensions | 43.99 x 35.99 x 4.37 cm |
| Weight | 7.5kg |
- Hàng chính hãng HP.
- Bảo hành: 3 năm.
