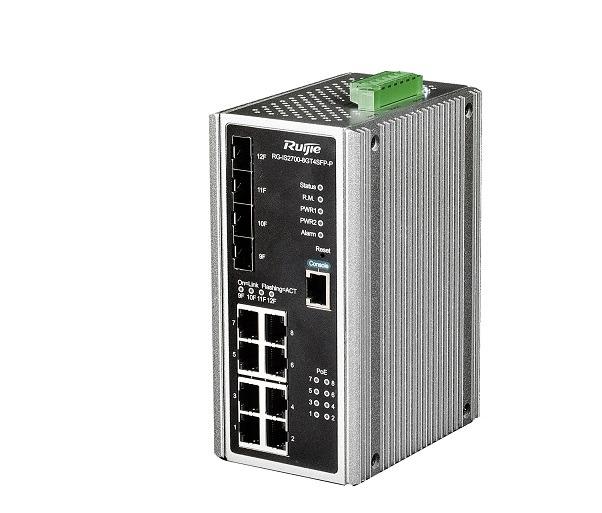

Industrial PoE Switch Ruijie RG-IS2700-8GT4SFP-P
- 8-port 10/100/1000BASE-T, 4-port 100/1000BASE-X SFP (non-combo), redundant DC power input.
- Port1-8 for PoE/PoE+, PoE power budget 240 watts.
- Tốc độ chuyển mạch: 24Gbps.
- Tốc độ chuyển gói tin: 18Mpps.
- Nguồn điện: AC 100~240V, 50/60Hz.
- Kích thước (W×H×D): 74 x 152 x 105 mm.
- Nhiệt độ hoạt động: 0°C~50°C.
Đặc tính kỹ thuật
| Model | RG-IS2700-8GT4SFP-P |
| Fixed Ports | 4 100/1000BASE-X SFP ports 8 10/100/1000BASE-T ports support PoE/PoE+ |
| Management Port | 1 console port |
| Switching Capacity | 24Gbps |
| Forwarding Rate | 18Mpps |
| MAC Address | 8K |
| VLAN Group | 256 (VLAN ID 1 ~ 4094) |
| VLAN Arrange | Port based VLAN, Q-in-Q (VLAN Stacking), GVRP |
| PoE Power Budget | 240 Watts |
| PoE Standard | 802.3 af/at |
| Operating Temperature | -40 to 75°C |
| Operating Humidity | 5% to 95%RH |
| Protection Rating | IP40 |
| MTBF | >42 years |
| Electromagnetic Interference | ESD (IEC 61000-4-2) Level 3 RS (IEC 61000-4-3) Level 3 EFT (IEC 61000-4-4) Level 3 CS (IEC 61000-4-6) Level 3 PFMF (IEC 61000-4-8) Level 3 Surge (IEC 61000-4-5) Level 3 |
| L2 Protocols | Jumbo Frame, Port based VLAN, Q-in-Q (VLAN Stacking), GVRP; Port Mirroring; IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave; Storm Control; IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, ERPS, R-Ring |
| QoS | WRR (Weighted Round Robin), SP (Strict Scheduling Priority) Hybrid Priority; IEEE 802.1p Based CoS, IP TOS, DSCP based CoS; Ingress Rate limit, Egress Rate limit; IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking |
| Security | Port Security: Static, Dynamic; Authentication: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption) |
| Management | SNMP v1/v2c/v3, HTTP, HTTPS, Telnet, RMON, SNMP, SSH, SNTP client, DHCP Client, DHCP Server, Option 66/67/82 |
| Dimensions (W×H×D) | 74x152x105 mm |
| Installation Mode | DIN rail-mounted |
| Power Supply | 48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at, redundant dual power input |
| System Power Consumption | 15 Watts |
| Heat Dissipation | Fanless design with high-efficiency heat sink |
| Emissions | EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Class A |
- Bảo hành: 3 năm.
