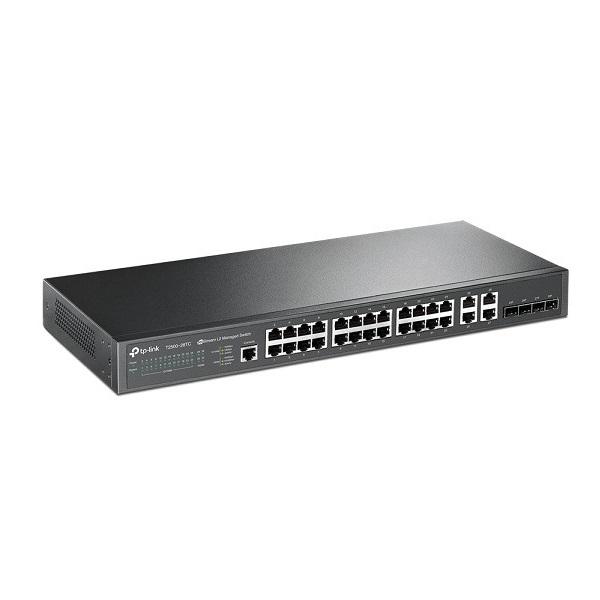

JetStream 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch TP-LINK T2500-28TC
- AAA, ACL, 802.1X Authentication, Port Security, IP Filtering, Storm control, DHCP Snooping, IP Source Guard and DoS Defend provide you robust security strategy.
- DDM provides the monitoring of all SFP Modules inserting to the switch.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application.
- SNMP, RMON, WEB/CLI/Telnet Log-in bring abundant management policies.
Specifications
| Model | T2500-28TC |
| Hardware Features | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo Gigabit SFP Ports 1 Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60Hz |
| Power Consumption | Maximum: 15W (220V/50Hz) |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 15W (220V/50Hz) |
| Max Heat Dissipation | 51.18 BTU/h |
| Performance | |
| Stacking | 32 Units Virtual Stacking |
| Bandwidth/Backplane | 12.8Gbps |
| Packet Forwarding Rate | 9.5Mpps |
| MAC Address Table | 8k |
| Jumbo Frame | 2048 Bytes |
| Software Features | |
| Quality of Service | 4 Queues/Port 802.1p/IP DSCP based COS, TOS |
| L2 Features | IGMP Snooping: V1/V2/V3 802.3ad with LACP STP/RSTP/MSTP BPDU Filtering/Guard Port Mirroring Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) Port/ Tag-based/Private/Protocol-based VLAN/ QinQ, GVRP |
| Access Control List | Packet Flow Filter; Packet Flow Redirection; Time Range Based; Flow-based QoS |
| Security | IP-MAC-Port-VID Binding IEEE 802.1x (Radius):Port/MAC Based, VLAN assignment, Guest VLAN, QoS assignment, Supplicant Support DoS Defend Dynamic ARP inspection (DAI) SSH: V1/V2 SSL:V1.5/V2 Port Security Broadcast Storm Control Guest VLAN IP Source Guard |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | System Diagnose: VCT DDM sFlow SNMP: V1/V2/V3 RMON: Group 1, 2, 3, 9 Command Line Interface: Telnet/Console Time Setting: SNTP Firmware Upgrade: TFTP & Web DGCO Client & BOOTP Client SYSLOG & Public MIBS |
| Others | |
| Certification | FCC, RoHS |
| Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
