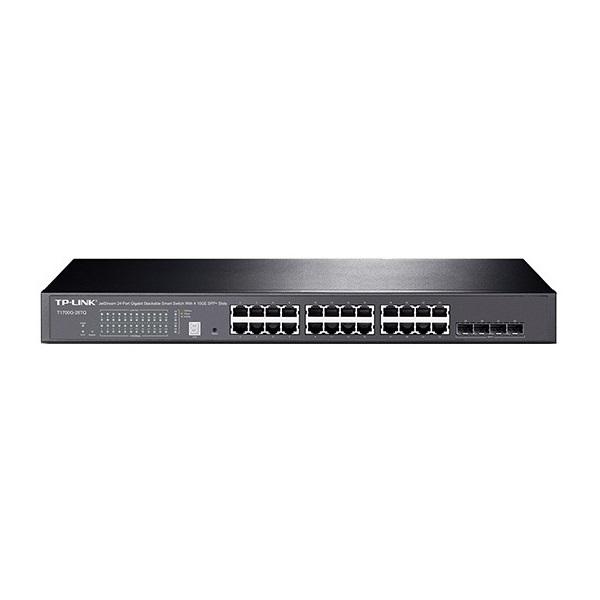

JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE Slots SFP TP-Link T1700G-28TQ
- 24 cổng RJ45 10/100/1000Mbps + 4 slot 10G SFP.
- QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.
- Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.
- Địa chỉ MAC: 16K.
- Bộ nhớ gói dữ liệu đệm: 1.5MB.
- Nguồn điện: 100-240VAC, 50/60Hz.
- Công suất tiêu thụ: Tối đa 21.8W.
- Kích thước: 440 x 180 x 44 mm.
- Trọng lượng: 2.8 kg.
- True physical stacking supports up to 6 units and 40Gbps bi-directional bandwidth for high scalability and efcient redundancy.
- 10G SFP+ ports for stacking and/or uplink, providing support for high-bandwidth applications for congestion relief and smooth data delivery.
- L2+ feature, Static Routing help route internal trafc for more efcient use of network resources.
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm.
- Control, DHCP Snooping, 802.1X, and Radius Authentication.
- IPv6 support provides dual IPv4/IPv6 stacking, MLD snooping, and IPv6 neighbor discovery.
- WEB/CLI managed modes, SNMP, RMON, and Dual Image enhance management.
Đặc tính kỹ thuật
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interfaces | 24 10/100/1000Mbps RJ45 Ports |
4 fixed 10G SFP+ Slots | |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) | |
1000BASE-X: MMF, SMF | |
10GBASE-LR | |
10GBASE-SR | |
Installable SFP + Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR |
TXM432-LR | |
TXC432-CU1M | |
TXC432-CU3M | |
Max Number of Stacking Ports Installable | 2 SFP+ |
Stacking Speed (Per Port) | 20Gbps (Full-Duplex) |
Max Number of Units Per Stack | 6 |
Switching Capacity | Up to 128Gbps for a standalone switch |
Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
MAC Address Table | 16K |
Packet Buffer Memory | 1.5MB |
Number of IP Interfaces | 16 |
Number of Static Routes | 32 IPv4 |
Jumbo Frame | 9KB |
Power Supply | 100-240VAC, 50/60Hz |
Maximum Power Consumption | 21.8W (220V/50W) |
FAN Quantity | Fanless |
Certication | CE, FCC |
Dimensions | 440 x 180 x 44 mm |
Weight | 2.8kg |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
