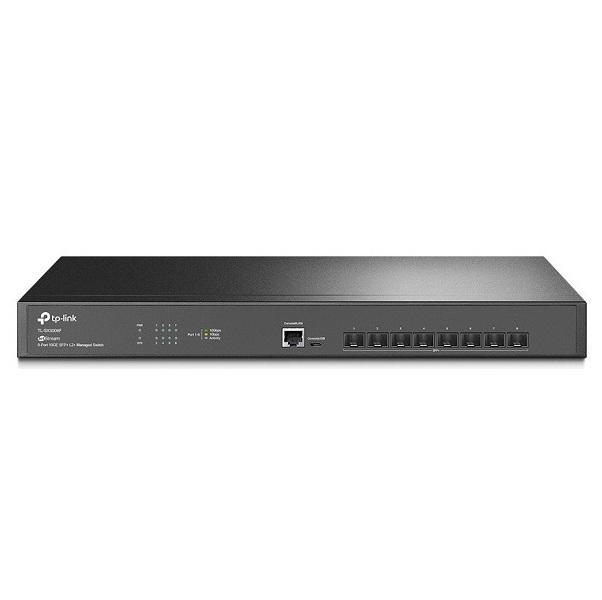

JetStream 8-Port 10GE SFP+ L2+ Managed Switch TP-LINK TL-SX3008F
- 10G Lightning-Fast Connections: 8 × 10Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160Gbps switching capacity.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Easy and convenient management with cloud access and Omada app.
- Static Routing: Route internal traffic for the efficient use of network resources.
- Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
- Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Specifications
| Model | TL-SX3008F |
| General | |
| Interface | 8 10GE SFP+ Slots |
| Console | 1 RJ45 Console Port, 1 Micro-USB Console Port |
| Flash | 32 MB |
| DRAM | 256 MB |
| Port Standard | IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber) IEEE 802.3ae: 10 Gigabit Ethernet over fiber |
| Performance | |
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.04 Mpps |
| MAC Address Table | 32K |
| Packet Buffer | 16 Mbit |
| Transmission Method | Store and Forward |
| Number of IP Interfaces | 16 |
| Number of Static Routers | 48 (IPv4, IPv6) |
| Jumbo Frame | 9 KB |
| Physical & Environmet | |
| Power Supply | 100-240 V AC~50/60 Hz |
| Max Power Consumption | 15.46 W (220 V/50 Hz) |
| Max Heat Dissipation | 52.75 BTU/hr (220 V/50 Hz) |
| Standby Power Consumption | 5.91 W (110 V/60 Hz) |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Fan Quantity | Fanless |
| Installation | Rack Mountable |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Operation Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, FCC, RoHS |
