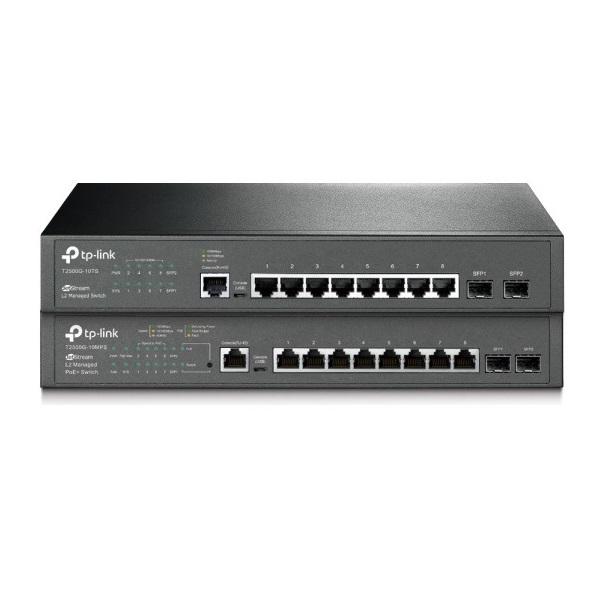

JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots TP-LINK T2500G-10TS
- Gigabit Ethernet connections on all ports provide full speed of data transferring.
- Selective RJ45 console port and Micro-USB console port.
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
- Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.
Specifications
| General | |
| Standard and Protocols | IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX/FX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x Flow control IEEE 802.3ad Link Aggregation IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLAN IEEE 802.1x Port-based Network Access Control IEEE 802.1p QoS |
| Network Media | 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Interface | 8 10/100/1000Mbps RJ45 ports 2 Gigabit SFP Slots |
| Console Port | 1 RJ45 Console Port 1Micro-USB Console port |
| Performance | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4Mbit |
| Jumbo Frame | 10KB |
| Physical & Environmen | |
| Power Supply | 100-240V AC, 50/60Hz |
| Max Power Consumption | 8.38W (220V/50Hz) |
| Max Heat Dissipation | 28.59 BTU/h |
| Dimensions (W × D × H) | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
| Fan Quantity | Fanless |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10% ~ 90% RH, non-condensing |
| Storage Humidity | 5%~90% RH, non-condensing |
| Certification | CE, FCC |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
