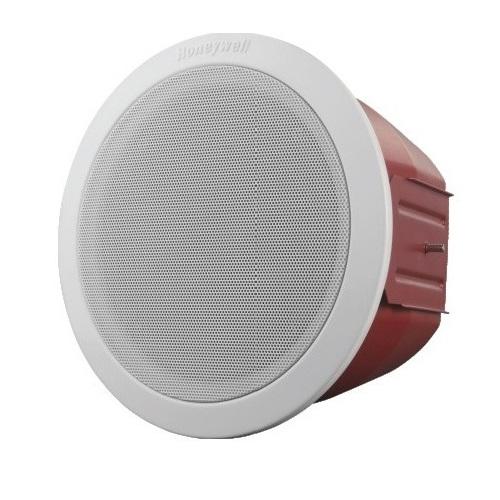

Loa âm trần 6W/3W/1.5W/0.75W Honeywell L-VCM6A/EN
- Màu: Trắng + Đỏ
- Kích thước: 222 × 129 mm (Ø x H)
- Lỗ cắt: Ø195 mm
- Tiêu chuẩn: EN54-24
Specifications
| Model | L-VCM6A/EN |
| Max power | 9 W |
| Rated power | 6 W |
| Power taps @ 100 V | 6 W / 3 W / 1.5 W / 0.75 W |
| Power taps @ 70 V | 3 W / 1.5 W / 0.75 W / 0.375 W |
| SPL at 6W/1W (100 Hz - 10 KHz, 1m) | 99dB/91dB |
| SPL at 6W/1W (100 Hz - 10 KHz, 4m) | 87dB/79dB |
| Frequency range (-10 dB) | 170 Hz - 20k Hz |
| Dispersion angle (1 Khz/ -6 dB) | 170° |
| Rated input voltage | 100 V / 70 V |
| Rated impedance | 1.7k Ω / 3.3k Ω / 6.7k Ω / 13k Ω |
| Connection | Ceramic Terminal |
| Dimensions | Φ 222 mm × 129 mm |
| Hole cut-out size | Φ 195 mm |
| Weight | 1.57 kg |
| Diameter of speaker | 6.5' |
| Front grill color | White (RAL 9003) |
| Dome color | Red (RAL3000) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
