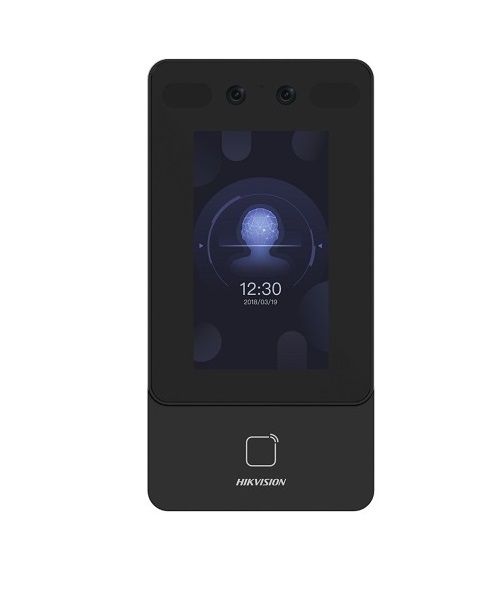

Máy chấm công nhận diện khuôn mặt HIKVISION DS-K1T342EX
- Máy chấm công nhận diện khuôn mặt và thẻ.
- Loại thẻ: EM card.
- Dung lượng: Tối đa 1.500 khuôn mặt và 3000 thẻ.
- Màn hình: LCD 4.3-inch.
- Hỗ trợ kết nối TCP/IP.
- Hỗ trợ ISAPI, ISUP5.0.
- Thời gian nhận diện:
- Khoảng cách nhận diện: 0.3m đến 1.5m.
- Nguồn điện: 12V/1A.
- Nhiệt độ làm việc: -10°C to 40°C.
- Vị trí lắp đặt: Trong nhà + ngoài trời (IP65).
Đặc tính kỹ thuật
| System | |
| Operation system | Linux |
| Display | |
| Dimensions | 4.3-inch |
| Resolution | 272 × 480 |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | × 2 |
| Video standard | PAL (Default) and NTSC |
| Network | |
| Wired network | 10 M/100 M self-adaptive |
| Wi-Fi | Not support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3,000 |
| Face capacity | 1,500 |
| Event capacity | 150,000 |
| Authentication | |
| Card type | EM card |
| Card reading frequency | 125 KHz |
| Face recognition duration | |
| Face recognition accuracy rate | >99% |
| Face recognition distance | 0.3 to 1.5 m |
| Function | |
| Face anti-spoofing | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| General | |
| Power supply | 12 VDC/1 A (power adapter included) |
| Working temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm × 181.3 mm × 25.7 mm |
| Application environment | Indoor |
| Installation | Wall Mounting; Base Mounting |
| Protective level | IP65 |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese |
| Weight | 0.36kg |
- Bảo hành: 24 tháng.
