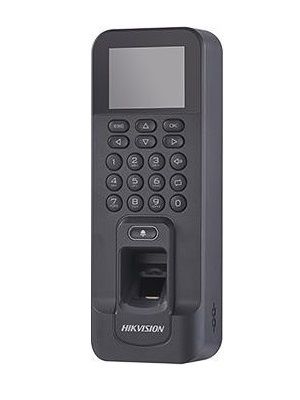

Máy chấm công vân tay HIKVISION DS-K1T804MF (SH-K2T804MF)
- Màn hình LCD độc lập, tích hợp module đọc thẻ Mifare.
- Lưu trữ 3000 thẻ, 3000 vân tay và 100,000 sự kiện chấm công.
- Hỗ trợ tính năng chấm công, tạo báo cáo tự động, module vân tay quang học.
- Giao tiếp Uplink: TCP-IP, WIFI.
Thông số kỹ thuật
| System Parameters | |
| Fingerprint Recognition Duration | < 1s |
| Operation System | Linux |
| Storage | 3,000 cards, 100,000 events, 150,000 attendance records |
| FRR (False Rejection Rate) | ≤0.01% |
| Card Reading Distance | 0 to 5cm |
| FAR (False Accept Rate) | ≤0.001% |
| Fingerprint Comparing Mode | 1:1 and 1:N, N=3000 |
| Card Reading Mode | Supports Mifare Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment |
| Card Reading Response Duration | < 1 s |
| Fingerprint Recognizer | Optical Fingerprint Recognizer Module |
| Fingerprint Capacity | 3,000 |
| Device Interfaces | |
| Wiegand Interface | Output: Wiegand 26/34; Input: Wiegand 26/34 |
| Communication Interface | TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34) |
| Output Interface | Relay (Lock Output) × 1, and Alarm Output × 1 |
| External Card Reader | Standard Wiegand26/34 |
| Transmission Rate | TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1 |
| Input Interface | Exit Button × 1, Door Sensor × 1 and Alarm Input × 1 |
| Wi-Fi | Support |
| USB Interface | USB2.0, Type A |
| General | |
| LCD Screen | 2.4-inch (320×240 LCD-TFT Display Screen) |
| Key Board | Keyboard (Back Light) |
| Power Supply | 12 VDC/2 A |
| Audio | 1 Buzzer and 1 Loudspeaker |
| Appearance Color | Black (Included), Gold (Optional), Silver (Optional), White (Optional) |
| LED Indicator | Power/Status (Red/Green) |
| Reset Key | × 1 |
| Installation | Surface Mounting, Metal Door Mounting, Installation with Gang Box |
| Temper-Proof | Support |
| Water-Proof | IP42 |
| Working Humidity | 10% to 90% (Non-Condensing) |
| Working Temperature | -10° C to 55° C (14° F to 131° F) |
| Dimensions (L×W×H) | 205 mm × 76.5 mm × 37 mm (8.07' × 3.01' × 1.46') |
- Bảo hành: 12 tháng.
