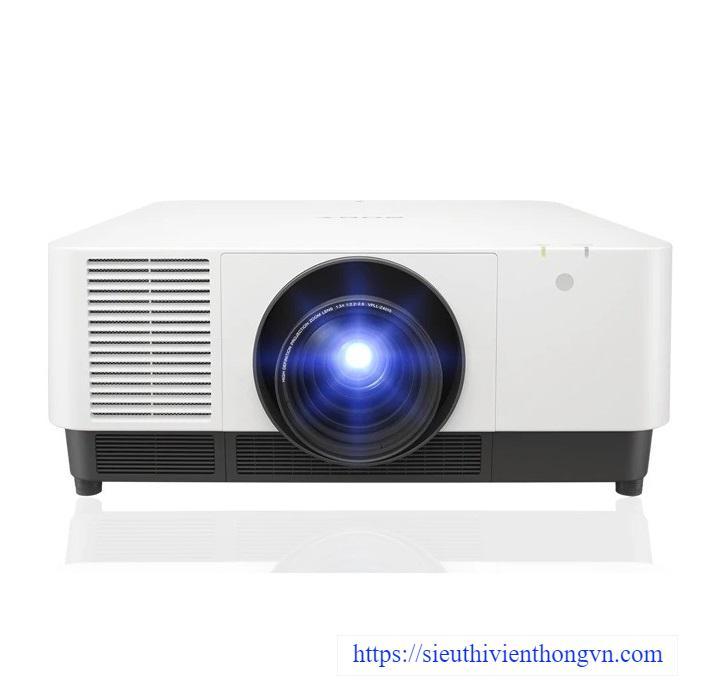

Máy chiếu Laser SONY VPL-FHZ120L
- Cường độ sáng: 12.000 Ansi Lumens.
- Công nghệ trình chiếu: 3 LCD system.
- Độ phân giải: WUXGA (1920x 1200).
- Khả năng trình chiếu: Từ 40inch tới 600inch (1.02 m tới 15.24m).
- Tuổi thọ bóng đèn: Lên tới 20.000 (H).
- Chỉnh vuông hình: chiều dọc, ngang +/-30°.
- Đầu vào: 1-HDBase T, 1-HDMI, 2-RGB (1-In,1-Out), 1-DVI-D, 1 USB-Type A, điều khiển: 1-RJ45.
- Trọng lượng: 28(Kg).
Đặc tính kỹ thuật
| Display system | |
| Display system | 3 LCD system |
| Display device | |
| Size of effective display area | 1” x 3 BrightEra LCD Panel, Aspect ratio: 16:10 |
| Number of pixels | 6,912,000 (1920 x 1200 x 3) pixels |
| Aspect ratio | 16:10 |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Projection lens | |
| Focus | Powered/Manual(Depend on lens) |
| Zoom - Powered/Manual | Powered/Manual(Depend on lens) |
| Zoom - Ratio | Depend on Lens |
| Throw ratio | Depend on Lens |
| Lens shift - Powered/Manual | Powered |
| Lens shift - Range Vertical/Horizontal | Range Vertical: Depend on Lens Range Horizontal: Depend on Lens |
| Light source | |
| Type | Laser diode |
| Filter replacement cycle (Max.) | |
| Filter replacement cycle (Max.) | 10,000 H |
| Screen size | |
| Screen size | Depend on Lens |
| Light output | |
| Light output mode: Standard | 12,000lm |
| Light output mode: Middle | 10,000lm |
| Colour light output | |
| Light output mode: Standard | 12,000lm |
| Light output mode: Middle | 10,000lm |
| Contrast ratio | |
| Contrast ratio (full white/full black) | ∞ : 1 |
| Colour space | |
| Colour space | sRGB 100% (Picture mode: sRGB) |
| Displayable scanning frequency | |
| Horizontal | 15 kHz to 92 kHz |
| Vertical | 48 Hz to 92 Hz |
| Display resolution | |
| Computer signal input | Maximum display resolution: 1920 x 1200 dots |
| Video signal input | 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p, 1080/30p |
| Keystone correction (Max.) | |
| Horizontal | +/- 30 degrees |
| Vertical | +/- 30 degrees |
| INPUT OUTPUT (Computer/Video/Control) | |
| INPUT A | RGB / Y PB PR input connector: 5 BNC (female) |
| INPUT B | RGB input connector: Mini D-sub 15-pin (female) |
| INPUT C | DVI input connector: DVI-D 24-pin (single link), HDCP support HDCP: v1.4 |
| INPUT D | HDMI input connector: HDMI 19-pin, HDCP support HDCP: v1.4 |
| INPUT E | HDBaseT interface connector: RJ45, 3 play |
| INPUT F | Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20) |
| INPUT G | HTML Viewer |
| OUTPUT 1 | Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female) |
| USB | Type-A x 1 |
| INPUT OUTPUT (Others) | |
| USB-1 | Type-A x 1 |
| Control signal input/output | |
| REMOTE | D-sub9pin male/RS232C |
| LAN | RJ45, 10BASE-T/100BASE-TX/1000BASE-T |
| Acoustic Noise | |
| Light output mode: Standard | 42dB |
| Light output mode: Middle | 39dB |
| Operating temperature / Operating humidity | |
| Operating temperature / Operating humidity | 0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation) |
| Dimensions (W x H x D) | |
| Dimensions (W x H x D) (without protrusions) | Approx. 544 x 205 x 564 mm |
| Mass | |
| Mass | Approx. 27 kg (58 lb) |
- Bảo hành 2 năm cho máy, 1000 giờ hay 12 tháng cho bóng đèn chiếu (tùy theo điều kiện nào đến trước).
