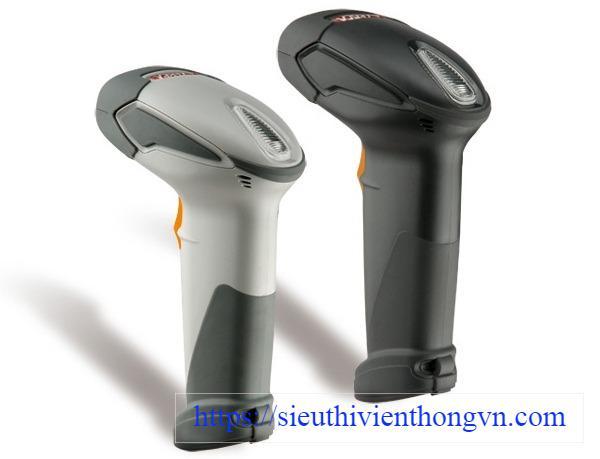

Máy đọc mã vạch không dây Zebex Z-3192BT
- Công nghệ chụp ảnh.
- Đọc các mã vạch 1D và 2D.
- Chế độ quét: Tự động hoặc bấm nút.
- Giao tiếp: USB (RS232 & PS/2 option).
- Điểm nổi bật: Tốc độ quét cực nhanh và nhạy, kiểu dáng súng bắn.
- Phạm vi kết nối không dây 100 mét.
Đặc tính kỹ thuật
| Model | Z-3192BT |
| Aiming Element | 650 nm visible laser diode (VLD) |
| Illumination Element | 625±5 nm |
| Optical System | 752H x 480V pixels (wide VGA) |
| Field of View | 39.6° horizontal; 25.7° vertical |
| Focusing Distance | 20.3 cm / 8 inch |
| Sensitivity | 360° (omnidirectional rotational sensitivity) |
| Print Contrast | Min. 30% @ UPC/EAN 100% |
| Indicator | Beeper and LED |
| Programmable Operation | Power mode, beeper tone & volume, focus control, image control, trigger mode |
| Image Format | BMP (*.bmp), TIFF (*.tif), JPEG (*.jpg) |
| System Interface | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Frequency | 2.4 – 2.48 GHz (ISM band) |
| Radio Interface | Cradle host; SPP master; HID; slave |
| Working Range | Up to 100M with communication cradle(depends on operating environment) |
| Dimension | 147.0 x 62.0 x 114.5 mm (device only) |
| Weight | 210 g (with battery); 510 g (with cradle) |
| Interface cable | Field replaceable, standard 3M straight |
| Input Voltage | 5VDC ±10% |
| Battery | 3.7V, 2500 mAh, Li-ion battery |
| Operating Current | Charging: 700 mA (external power); Non-charging: 70 mA |
| Recharging Time | Max. 5 hours |
| Number of Scan | Over 20,000 scans at 1 scan per second per full charge |
| Battery Life | 7 hours per full charge |
| Light Level | 0 – 100,000 Lux (fluorescence) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
