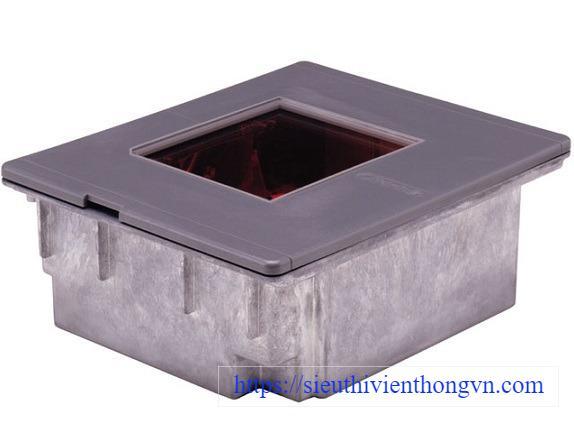

Máy quét mã vạch HONEYWELL Horizon MS-7625
- Khả năng đọc: Đọc mã vạch 1D.
- Đọc 20 tia tự động.
- Tốc độ đọc: 2.000lines/giây.
- Lựa chọn thêm: kết nối EAS (khử từ).
- Ứng dụng: Siêu thị, nhà sách, trung tâm thương mại,...
Đặc tính kỹ thuật
| Light Source | Visible Laser Diode 650 nm + 10 nm |
| Laser Power | 1.1 mW (peak) |
| Depth of Scan Field | 0 mm - 203 mm (0” - 8.0“) for 0.33 mm (13 mil) bar code |
| Width of Scan Field | 137 mm (5.4”) @ 40 mm (1.6”) ; 221 mm (8.7”) @ 178 mm (7.0”) |
| Scan Speed | 2000 scan lines per second |
| Scan Pattern | 5 fields of 4 parallel lines (omnidirectional) |
| Number of Scan Lines | 20 |
| Minimum Bar Width | 0.127 mm |
| Decode Capability | Autodiscriminates all standard bar codes; for other symbologies call Metrologic |
| System Interfaces | PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, IBM 468x/469x, Stand Alone PC Keyboard, USB |
| Print Contrast | 35% minimum reflectance difference |
| Number Characters Read | Up to 80 data characters |
| Roll, Pitch, Yaw | 360°, 60°, 60° |
| Beeper Operation | 7 tones or no beep |
| Indicators (LED) | Amber = laser on, ready to scan; Red = good read, decoding |
| Termination | Three 10-pin modular RJ45 |
| Cable | Standard 2.1 m (7’) straight; for other cables call Metrologic |
| Input Voltage | 5.2 VDC + 0.25 V |
| Power | 2.6W |
| Operating Current | 500mA |
| Dimensions | 193 (H) x 88 (D) x 229 (W) mm |
| Weight | 2.88kg |
- Bảo hành: 12 tháng.
