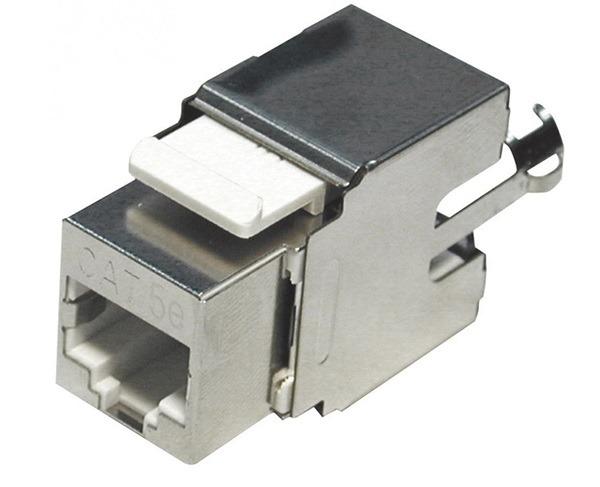

Modular Jack-Ổ cắm chống nhiễu Dintek CAT.5E Fully shielded Keystone Jack (1305-03024)

-         Modular Jack - ổ cắm CAT.5e chống nhiễu Fully shielded Keystone Jack, Krone type

-         Product code: 1305-03024

-         Cat.5e 110/ Krone horizontal type fully shielded keystone Jack, T568A/B Component level.

Electrical:

-         Electrical insulation resistance: 10 mega ohms min.

-         Dielectric with standing voltage: 1,000 V, RMS, 60Hz,1min.

-         Contact resistance: 20 milli ohms max.

-         Current rating: 1.5 AMPS at 20°C

Transmission performance:

-         Meets all cat.5e channel performance requirements specified in TIA/EIA-568B.2

Physical:

-         Housing: High-impact, flame-retardant plastic, UL94V-0 rated.

-         Spring wire/contact blades:

-         Material: Phosphor bronze alloy.

-         Plating: 24 Carat hard gold (50u” plating thickness) over 100u” nickel.

-         Shell: Brass alloy plated with 100u” nickel.

-         Sản xuất tại Taiwan.
