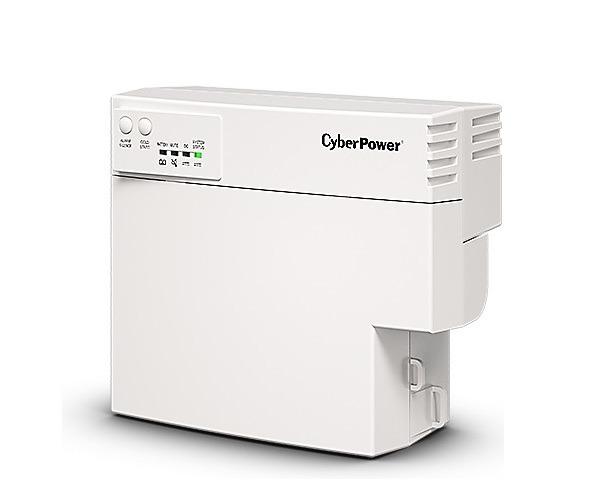

Nguồn lưu điện UPS cho camera CyberPower CSN27U12V2-TL1
- CyberPower CSN27U12V2-TL1 provides cable telephony, wireless local loop (WLL), and fiber-to-the-X (FTTX) providers with a dependable, cost-effective local power supply for customer premise(s) equipment (CPE). The CyberShield provides the Multiple Service Operator (MSO) with a local powering solution that has lower installation costs, lower operational costs, and lower service costs than competing power technologies.
- The CyberShield keeps network communications, including telephone communications, up and running during power outages. The unit functions as a battery backup supplying continuous 12VDC to locally power network interface units, cable telephony modems, wireless base stations, and fiber-to-the-home interface modules or integrated access devices.
- Capacity: 27W.
- Input Voltage: 90Vac ~ 264Vac.
- Output Voltage: 12Vdc.
- 90% Recharge Time: 14 Hours.
- Battery Quantity: 1pcs.
Thông số kỹ thuật
| Model Name | CSN27U12V2-TL1 |
| General | |
| Phase | Single Phase |
| Input | |
| Input Voltage Range (Vac) | 90 ~ 264 |
| Input Frequency (Hz) | 47 ~ 70 |
| Input Connector Type | IEC C7 |
| Power Cord Length (m.) | 2.4 |
| Output | |
| Output Voltage Range (Battery Mode) (Vdc) | 12 |
| Max Output Power (Watts) | 27 |
| E ciency (Line Mode) | >79% |
| Efficiency (Battery Mode) | >90% |
| Output Connection | DC Jack |
| Battery | |
| Backup Time (Hours) | Depends on Loading |
| Typical Recharge Time (90% Charged) (Hours) | 14 |
| Auto-charge | Yes |
| User-replaceable | Yes - Hot-swappable |
| Battery Type | Sealed Lead-acid |
| Battery Quantity (pcs) | 1 |
| Battery Voltage (V) | 12 |
| Battery Capacity (AH) | 7.2 |
| Surge Protection & Filtering | |
| Lightning / Surge Protection | Yes |
| Management & Communications | |
| LED Indicators | System Status, Battery Mode, Mute, Replace Battery, Battery Missing |
| Audible Alarms | Utility Failure, Low Battery, Replace Battery |
| Physical | |
| Enclosure Construction | Plastic |
| Color | Cool Gray 1C |
| Installation | Wall-mounted |
| Physical Size | |
| Dimensions (WxHxD) (mm.) | 190 x 167 x 83 |
| Weight (kg.) | 3.03 |
| Shipping Dimensions | |
| Dimensions (WxHxD) (mm.) | 264 x 210 x 135 |
| Weight (kg.) | 3.304 |
| Environmental | |
| Operating Temperature (°C) | -20 ~ -45 |
| Operating Relative Humidity (Non-condensing) (%) | 0 - 95% |
| Operating Elevation (feet/meters) | 0 - 10,000 ft (0 - 3,000 m) |
| Storage Temperature (°C) | -20 ~ 45 |
| Storage Elevation (feet/meters) | Storage Elevation (feet/meters) |
| Certifications | |
| Certifications | CE, FCC Class B |
- Bảo hành: 24 tháng.
