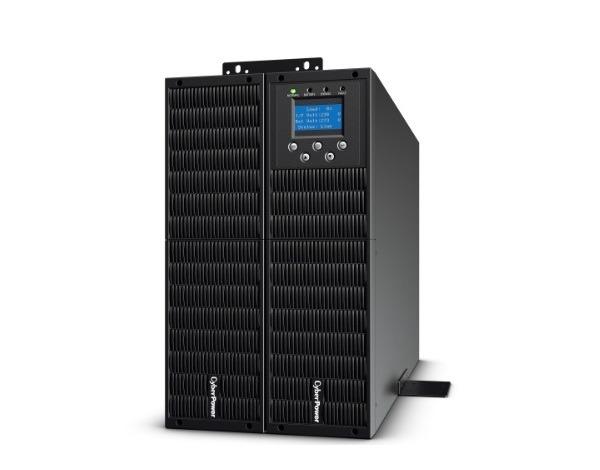

Nguồn lưu điện UPS CyberPower OLS6000ERT6UA
- Công nghệ: On-line double conversion.
- Công suất: 6000VA/5400W.
- Hệ số công suất: 0.9.
- Điện áp ngõ vào: 110-276VAC.
- Tần số nguồn vào: 50/60Hz ±10% (Auto-sensing).
- Điện áp ngõ ra: 208, 220, 230, 240 VAC (Configurable) ±1%.
- Tần số nguồn ra: 50 Hz ± 0.1%.
- Thay thế nóng moduler batteries.
- Màn hình hiển thị LCD và Led (xoay được 90 độ).
- Kết nối parallel lên đến 4 đơn vị.
- EPO (Emergency power off): ngắt out khẩn cấp.
- Cổng kết nối: RS232, USB.
- SNMP/HTTP Remote Management Capability (Optional).
- Phần mềm: PowerPanel®Business Edition.
- Kiểu dáng: Rack 6U Or Tower.
Đặc tính kỹ thuật
| Model | OLS6000ERT6UA |
| General | |
| UPS Topology | Online Double Conversion |
| Energy Saving Technology | Online ECO Mode Eciency > 96% |
| Active PFC Compatibility | Yes |
| Parallel Expansion | 4 |
| Input | |
| Compatible with Generators | Yes |
| Nominal Input Voltage | 230VAC |
| Input Voltage Range | 110 ~ 276 VAC |
| Adjustable Voltage Range | 0 ~ 80% load 110 ~ 276 Vac 0 ~ 100% load 176 ~ 276 Vac |
| Input Frequency | 50Hz ± 5 60Hz ± 6 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current | 27.3A |
| Input Power Factor | 0.99 |
| Input Connector Type | Hardwire Terminal Block |
| Output | |
| Capacity | 6000VA |
| Capacity | 5400W |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage | 208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1% |
| Output Voltage Setting | Configuration |
| On Battery Frequency | 50Hz ± 0.1% 60Hz ± 0.1% |
| Output Frequency Setting | Configuration |
| Power Factor | 0.9 |
| ECO voltage mode | ± 10% |
| Overload Protection | Internal Current Limiter, Circuit Breaker, Fuse |
| Overload Protection (Line Mode) | 105 ~ 125% Load for 1 min, 125 ~ 135% Load for 30 sec, 135 ~ 150% Load for 1 sec,> 150% Load Immediately |
| Overload Protection (Battery Mode) | 105 ~ 125% Load for 1 min, 125 ~ 135% Load for 30 sec,> 135% Load Immediately |
| Overload Protection (Bypass Mode) | 125 ~ 150% Load for 1 min, 150 ~ 170% Load for 10 sec,> 170% Load for 1 sec |
| Harmonic distortion (Linear load) | THD <2% |
| Harmonic distortion (Non-linear load) | THD <5% |
| Bypass In | Auto Skip |
| Socket (s) – Total | 1 |
| Normal Switching Time | 0 |
| Battery | |
| Runtime at Half Load | 9.3 min |
| Runtime at Full Load | 2.5 min |
| Typical Recharge Time | 4 hours |
| Maximum Charge Current | 1A |
| Smart Battery Management (SBM) | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| Extended Battery Module (EBM) | BPSE192V75ART3U |
| Maximum Number of EBMs | 3 |
| Surge protection & Filtering | |
| Surge Suppression | 445J |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LCD Panel | Yes |
| LCD Orientation | Rotatable LCD – via Setting |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 |
| Dry Switch (with Relay) | Optional |
| Emergency Power Off (EPO) Port | Yes |
| Power Management Software | PowerPanel® Business (Recommended) |
| SNMP/HTTP Remote Monitoring | Yes - with RMCARD205 option |
| Physical | |
| Form Factor | Rackmount, Tower |
| Others | |
| Dimensions (WxHxD) | 438 x 130.5 x 480 mm |
| Weight | 13.8kg |
| Installed Rack Height | 3U |
| Operating Temperature | 0 ~ 40°C |
| Operating Relative Humidity (Non-condensing) | 20 ~ 90% |
| Online Thermal Dissipation | 1603 BTU/hr |
- Bảo hành: 24 tháng.
