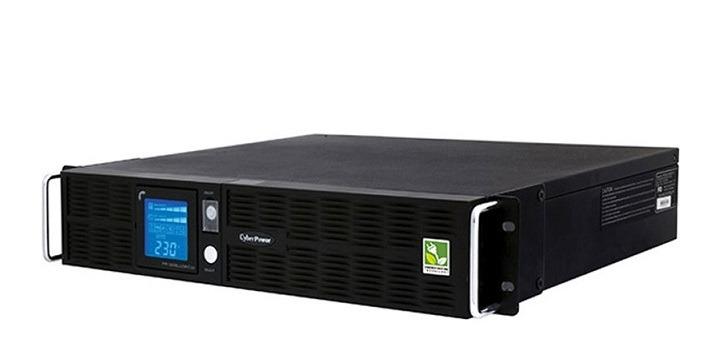

Nguồn lưu điện UPS CyberPower PR1000ELCDRT2U
- Dung lượng (VA/Watts): 1000 VA/900 Watts.
- Nguồn điện đầu ra: 220Vac ± 5%/ 230Vac ± 5%/ 240Vac ± 5%.
- Half Load Runtime: 22 min.
- Outlets: IEC C13 x 8.
- Sử dụng công nghệ Line-Interactive.
- UPS thiết kế dạng Rack/ Tower.
- Pure Sine Wave Output.
- Sử dụng công nghệ Line-Interactive.
- Automatic Voltage Regulator (AVR).
- Cầu chì bảo vệ ngõ ra UPS.
- Tự động sạc battery.
- Hỗ trợ cổng Emergency Power Off (EPO).
- Màn hình hiển thị LCD (có thể xoay được).
- Kết nối với máy tính qua cổng USB & Serial.
- Thay thế battery nóng.
- Có cổng chống sốc điện (dùng cho máy in,...).
- Bảo vệ chống sét lan truyền: Phone/Fax/Modem and DSL/Network protection.
- Phần mềm: PowerPanel Business Edition.
- Hỗ trợ quản lý từ xa giao thức: SNMP/ HTTP.
- Cổng kết nối qua RS232 và USB.
Thông số kỹ thuật
| Model Name | PR1000ELCDRT2U |
| General | |
| UPS Topology | Line-interactive |
| Energy Saving Technology | GreenPower UP Bypass Technology |
| Active PFC Compatibility | Yes |
| Input | |
| Nominal Input Voltage (Vac) | 220, 230, 240 |
| Input Voltage Range (Vac) | 160 ~ 286 |
| Input Frequency (Hz) | 50 ± 3, 60 ± 3 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current (A) | 10 |
| Input Connector Type | IEC C14 |
| Output | |
| Capacity (VA) | 1000 |
| Capacity (Watts) | 900 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage(s) (Vac) | 220 ± 5%, 230 ± 5%, 240 ± 5% |
| On Battery Frequency (Hz) | 50 ± 1%, 60 ± 1% |
| Power Factor | 0.9 |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
| Overload Protection | Internal Current Limiting, Circuit Breaker |
| Outlet(s) - Total | 8 |
| Outlet Type | IEC C13 x 8 |
| Outlet(s) - Battery & Surge Protected | 8 |
| Outlet(s) - Critical Load (CL) | 2 |
| Outlet(s) - Non-Critical Load (NCL) | 6 |
| Typical Transfer Time (ms) | 4 |
| Battery | |
| Runtime at Half Load (min) | 22 |
| Runtime at Full Load (min) | 6.7 |
| Typical Recharge Time (Hours) | 6 |
| User Replaceable | Yes |
| Hot-Swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Replacement Battery Pack | RBP0030 |
| RBP Quantity (pcs) | 1 |
| Surge Protection & Filtering | |
| Surge Suppression (Joules) | 810 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out |
| Management & Communications | |
| LCD Panel | Yes |
| HID Compliant USB Port(s) | 1 |
| Serial Port | RS232 x 1 + Dry Contact x1 |
| Emergency Power Off (EPO) Port | Yes |
| Power Management Software | PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205 |
| Physical | |
| Form Factor | Rack/Tower |
| Physical Size - UPS Module | |
| Dimensions (WxHxD) (mm.) | 433 x 88 x 388 |
| Weight (kg.) | 25.5 |
| Installed Rack Height (U) | 2 |
| Environmental | |
| Operating Temperature (°C) | 0 ~ 40 |
| Operating Relative Humidity (Non-condensing) (%) | 0 ~ 95 |
| Online Thermal Dissipation (BTU/hr) | 51.2 |
| Certifications | |
| Certifications | CE, EAC, RCM |
| RoHS | Yes |
- Bảo hành: 24 tháng.
