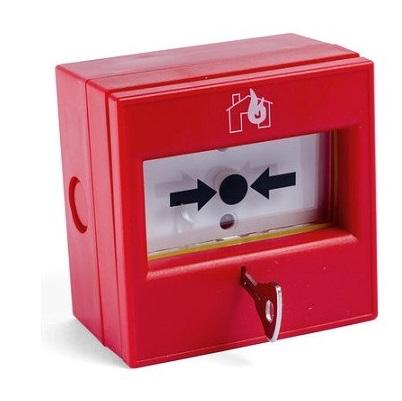

Nút nhấn báo cháy có địa chỉ DETECTOMAT PL-3300-MCP
- Manual Call Point for loop3000 for the manual activation of an alarm with bidirectional isolator according to EN 54-11: A1, EN 54-17. Red plastic housing with imprint 'burning house'.
- Manual Call Point mechanics for the activation of a manual alarm.
- Non-destructive activation and reset via mechanics.
- Automatic and manual addressing with Loop 3000.
- Integrated Isolator with T-branch.
- Functions completely integrated via Loop 3000-protocol.
- Integrated red Alarm-LED.
Thông số kỹ thuật
| Model | PL-3300-MCP |
| Supply Voltage | 15V to 32 VDC on 2-wire bus (max. 34 VDC) |
| Quiescent Current | 280 μA |
| Alarm Current | 280 μA; 5 mA, if Alarm-LED active |
| Ambient Temperature | -10°C to +60°C |
| Humidity | max. 95% |
| Protection class | IP32 |
| Dimensions (H x W x D) | 89 mm x 89 mm x 51 mm |
| Material | ABS |
| Colour | Red (RAL 3000) |
| Standards | 54-11, 54-17 |
| VdS-Approval | G 210137 |
| System Approval | S 210001, S 216001 |
- Bảo hành: 12 tháng.
