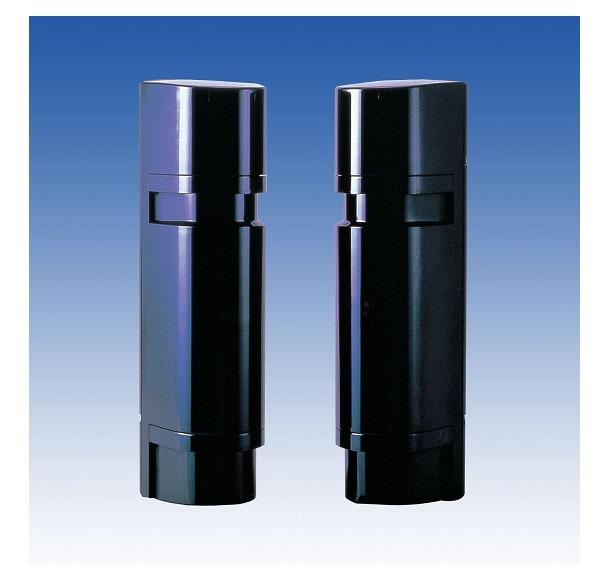

Photoelectric Beam Sensor Outdoor TAKEX PB-IN-100HF(E)
- 4 Synchronized High Power Infrared
+ 4 beams are 'and-gated', which helps to prevent false alarms from falling leaves and small animals.
+ The active infrared transmission is exceptionally strong with a maximum arrival distance ten times greater than the specified protection distance.
+ External light compensation circuit provides excellent tolerance against sun light, automobile head lights, fluorescent light or mercury light.
- Four Frequencies Selections: 4 separate choices of frequency avoid cross-talk.
- Beam Transmission Strength Selection: 2 levels of beam transmission strength which can be set to suit the protection distance.
- Easy Beam Alignment
+ Audible signal for alignment [Utillty model]: An alignment tone aids in quick set-up to beams. The tone becomes maximum at peak of beam level.
+ Sensitivity attenuation LED: Lights when beam level is attenuated, which shows low sensitivity.
+ Monitor jack output.
+ Target color.
+ Wide adjustment (horizontally ±90°,vertically ±10°).
- RoHS Certified Compliant: Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyl, Polybrominated diphenyl ether.
- Auto-Gain Lock: Optimal sensitivity gain is automatically set at any coverage distance up to the maximum protection distance. Aut-Gain lock is easily confirmed by sound check.
- Programmed Agc: Sensitivity is automatically increased in bad weather to contend with fog, heavy rain, frost or snow.
- Alarm Memory: Alarm memory LED located on receiver can be automatically reset (flickering 5 min. after an alarm and auto-reset 55 min. after that) or manually controlled.
- Protection Against Frost/Dew: As a special hood is attached on sensor cover, beam protection continues without interruption even when the cover is screened by frost or dew.
- Environmental Module Built-In: Environmental trouble signal is sent when beam reception level is reduced below an acceptable level.
- Other Features
+ Tamper output (transmitter and receiver).
+ Polycarbonate cover excellent at anti-shock.
+ Optional accessories.
Thông số kỹ thuật
| Product name | Photoelectric beam sensor |
| Model | PB-IN-100HF(E) |
| Detection system | Near infrared beam interruption system (TR.-RE. 4 beams simultaneous interruption) |
| Infrared beam | Double modulation pulsed beams by LED |
| Protection distance | Outdoor 330' (100m) or less |
| Max. arrival distance | Tenfold 3300' (1000m) |
| Response time | 50msec. to 700msec. variable (Standard : 50msec.) |
| Power supply | 12V to 30V DC (non-polarity) |
| Current consumption | 70mA or less at protection (max. 105mA or less) |
| Alarm output | Dry contact relay : NO or NC (selectable) Reset : Interruption time + off-delay (approx. 1.5sec) Contact capacity: 30V (AC/DC) 1A or less |
| Enviromental output | Dry contact relay : NO or NC (selectable) Contact operation : Output when weather condition gets worse Contact capacity: 30V (AC/DC) 1A or less |
| Tamper output | Dry contact relay : NC Contact operation : Output when receiver cover is detached Contact capacity: 30V (AC/DC) 0.1A or less |
| Alarm LED | Red LED (receiver) lights when an alarm is intiated |
| Sensitivity attenuation LED | Red LED (receiver) lights when beam reception is attenuated |
| Functions | Modulated beam frequancy selection, Tone indicator, Environmental module, Beam power selection, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor jack. |
| Beam adjustment | Horizontal : +/-90°, Vertical : +/-10° |
| Ambient temperature range | -31F to +151F (-35C to +66C) |
| Mounting position | Outdoor (IP55) |
| Wiring | Terminals |
| Weight | Transmitter : 42oz (1200g) Receiver : 45.5oz (1300g) |
| Appearance | Resin (wine red) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
