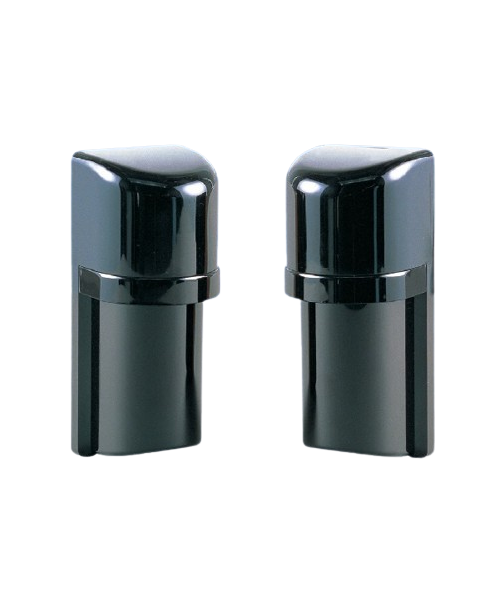

Photoelectric Twin Beam Sensor Outdoor/Indoor TAKEX PB-100TK
- Twin beam sensor for outdoor 100m use.
- Double beam AND gated.
- Frost proof cover/AGC circuit/monitor jack output.
Thông số kỹ thuật
| Detection system | Near infrared (through type) |
| Alarm output | Dry contact relay output: 1c Reset time: Detection time + delay time (approx. 1 ~ 3sec) 30V (AC/DC) 0.5A Max |
| Supply voltage | 10 to 30V DC (non-polarity) |
| Power consumption | 53mA to 80mA |
| Features | Double modulation frequency Frost proof cover AGC circuit Monitor jack output |
| Ambient temperature | −35C to +60C |
| Mounting position | Outdoor, indoor |
| Optional | Pole, Pole cover, housing |
| External dimensions | W73mm × H170mm × D71.5mm |
| Weight | Transmitter: 380g Receiver: 400g |
- Xuất xứ: Việt Nam.
- Bảo hành: 18 tháng.
