Presence Detector THEBEN LUXA 103 S360-101-12 DE-UP WH

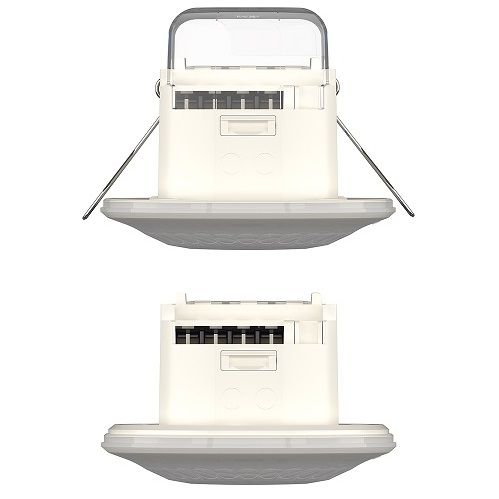

- Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame.
- 1 channel light (relay 230 V) and 1 channel presence (relay potentialfree for HVAC control).
- Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height.
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel.
- Networking with wall detector theMura Slave possible.
- Connection option for push-button for manual switching.
- Operation as fully or semi-automatic possible.
- One directional brightness measurement (mixed light measurement).
- Teach-in function, pulse function, test function, staircase lighting function.
- Ready for operation immediately due to factory presetting.
- Changes of values and settings are possible with potentiometers and with one of these optional remote controls.
- App/universal remote control theSenda B.
- Service remote control theSenda P.
- Optional user remote control for manual override theSenda S/theSenda B.
- Restriction of the detection range possible.
- Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8m.
Đặc tính kỹ thuật
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Stand-by consumption | ca. 0.5W |
| Light measurement | Mixed light measurement |
| Colour | White |
| Switching output | Light | Presence |
| Installation type | Ceiling installation |
| Setting range brightness | 5 – 1000 lx |
| Detection angle | 360° |
| Installation height | 2.5 – 3.5 m |
| Light switch-off delay | 15 s - 30 min |
| Presence switch-off delay | 10 s - 120 min |
| Switch-on delay presence | 0 s – 10 mi |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current | max. 500 A / 200 µs |
| LED lamp 2-8 W | 400 W |
| LED lamp > 8 W | 400 W |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Remote controlled | Yes |
| Ambient temperature | -25°C ... 55°C |
| Type of protection | IP 54 (when fitted) |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
