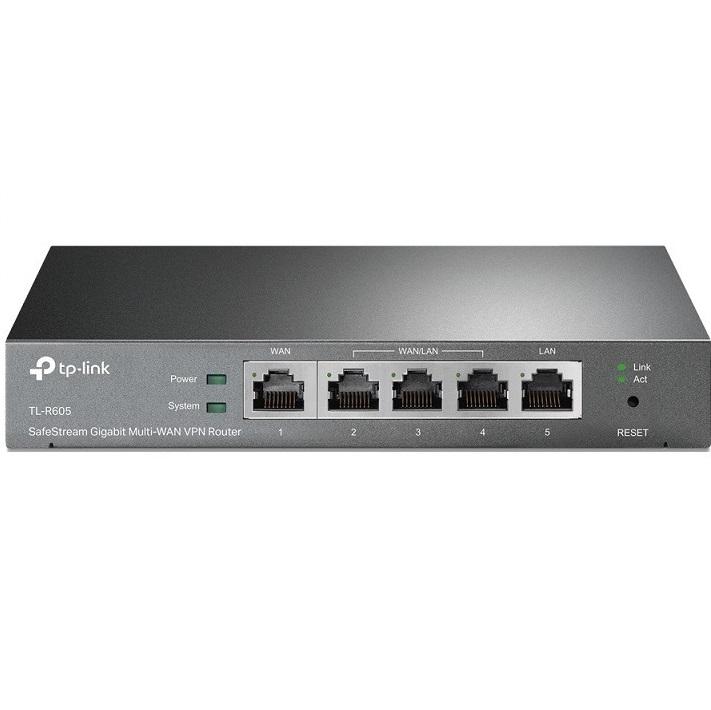

SafeStream Gigabit Multi-WAN VPN Router TP-LINK TL-R605
- Designed for Remote Office or Small Office: Supports one of the tunnel type; 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, and 16× PPTP VPN connections.
- Reliable and Flexible: Up to 4 WAN connections connecting to 4 different Internet service providers and private links. Bandwidth based, app-based, or automatic line backup allow flexible and reliable use of your wide-area links.
- Gigabit Router: All (5) gigabit connecting ports provide high-speed wired connectivity.
- Built-in Firewall: Built-in firewall and ACS filtering for easy penetration and blocking settings
- VLAN and VLAN routing: Works with standard 802.1Q switches for multiple subnet separation and communication. Multi-Nets NAT for direct Internet access from any VLAN.
- Secured Router: Advanced ACS policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
- Centralized Management: Work with center control Omada SDN controller enables cloud access for easy management and deployment.
- Omada Cloud-based SDN: Zero-Touch Provisioning (ZTP) eliminates the installation and maintenance truckloads.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | 1 Fixed Gigabit WAN Port 1 Fixed Gigabit LAN Port 3 Changeable Gigabit WAN/LAN Ports |
| Button | Reset Button |
| Power Supply | External 9V/0.9A DC Adapter |
| Flash | SPI 16MB |
| DRAM | 128 MB |
| LED | PWR, SYS, WAN, LAN |
| Dimensions (W x D x H) | 158 × 101 × 25 mm |
| PERFORMANCE | |
| Concurrent Session | 25 |
| IPsec VPN Throughput | 41.5 Mbps (EAP-SHA1-AES256) |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static/Dynamic IP PPPoE PPTP L2TP |
| DHCP | DHCP Server/Client DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces |
| MAC Clone | Modify WAN MAC Address |
| IPTV | IGMP v2/v3 Proxy |
| VLAN | 802.1Q VLAN |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing |
| Bandwidth Control | IP or Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| Load Balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | SPI Firewall VPN Passthrough DoS Defence, Ping of Death Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 20 IPsec VPN Tunnels LAN-to-LAN or Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2 MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP with MPPE Encryption PPTP VPN Server or Clients for (10 clients) |
| L2TP VPN | L2TP over IPSec L2TP VPN Server or Clients (10 clients) |
| OpenVPN | OpenVPN Server or Client (for 10 clients) |
| SECURITY | |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Access Control | Source and Destination IP Access Control |
| AUTHENTICATION | |
| Web Authentication | Captive web portal authentication styles • No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC200, OC300) Omada Software Controller |
| Service | Dynamic DNS (Dyndns, No-IP) |
| Cloud Access | Cloud access through Omada SDN controllers |
| Maintenance | Time Setting Diagnostic Firmware Upgrade Factory Defaults/Reboot Backup&Restore System Log Remote Management Statistics Controller Settings SNMP |
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning) |
- Bảo hành: 36 tháng.
