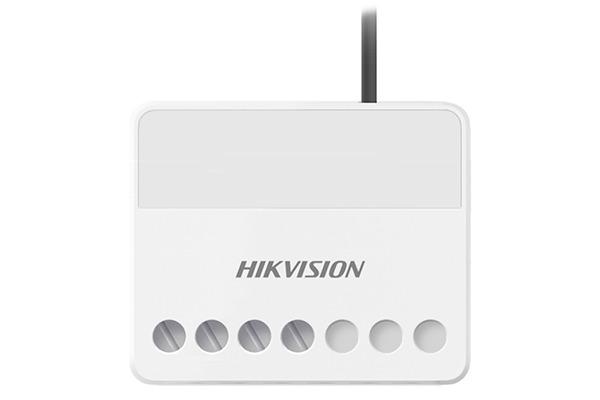

Thiết bị phát IR không dây HIKVISION DS-PM1-O1H-WB
- 433MHz two-way wireless communication.
- AES-128 encryption.
- LED display, show status of device and replay on/off display.
- Small case design, which can be put into hiding places easily.
- Automation operating, one button turn on/off from APP/Keyfob/Keypad.
- Setting scenarios by different events.
Đặc tính kỹ thuật
| Model | DS-PM1-O1H-WB |
| Software Features | |
| Learning Button | 1, For register |
| Scenario Setting | By Alarm, By Operation, By Fault, By Schedule, By Manual |
| Hardware Features | |
| Relay Output | 1, NO/NC (AC 100~240v, Max 13A） |
| Serial Port | 1, for debug |
| RF Transmission | |
| RF Method | Two way communication |
| RF Modulation | 2GFSK |
| RF Frequency | 433MHz |
| RF Distance | 800m |
| Wireless Security | AES-128 |
| Electrical Characteristics | |
| Power Supply | AC 100v – 240v, 50/60 Hz |
| Display | |
| Installation Method | Wall Mounting or Inside 86 box |
| Color | White |
| LEDs Status | 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| General | |
| Operation Humidity | 10％~90％ |
| Shell Material | Plastic |
| Dimension | 38 x 25 x 18mm |
| Weight | 31.5kg |
- Bảo hành: 12 tháng.
