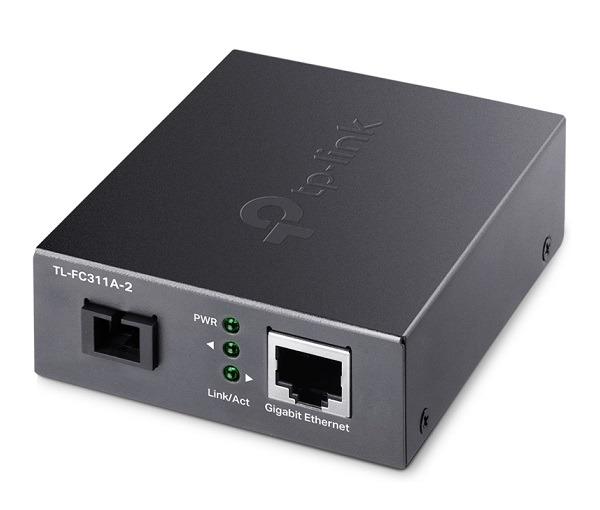

Gigabit WDM Media Converter TP-LINK TL-FC311A-2
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
Specifications
| NETWORK | |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | Single-mode Fiber UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions (W x D x H) | 94.5×73.0×27.0 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber (2 km max.) |
- Bảo hành: 36 tháng.
