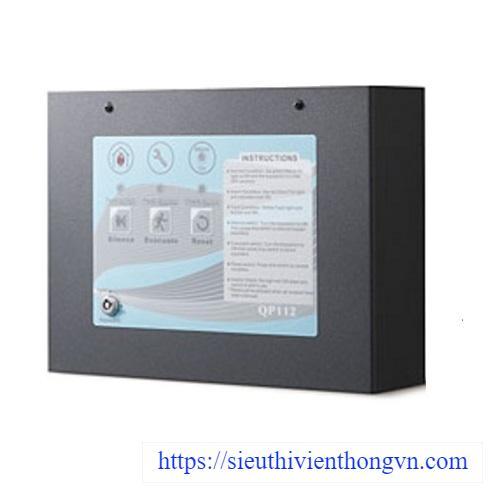

Trung tâm báo cháy 1 kênh HORING QP112
- Là trung tâm báo cháy với số lượng kết nối đầu báo nhiệt không giới hạn.
- Số lượng kết nối đầu báo khói là 30 đầu/zone.
- Nguồn điện: 220VAC.
- Dung lượng pin: 24V/ 1.2Ah.
- Removable front board for easy maintenance.
- Easy-to-clean front board is able to avoid dirt attached.
- High luminance and long life span LED.
- Build-in 24V power and battery charger.
- Compatible with most brands of conventional detectors.
- Independent visual & audible indication for zone open/short fault.
- Independent visual & audible indication for AC power & battery fault.
- Visual & audible indication for sounder short circuit fault.
- Buzzer silence with 3-mode operation feature.
- Short circuit = Alarm feature (selected by JUMPER, applicable for manual call point w/o resistance).
- Accurate supervision circuit for battery.
- Kích thước: 203 x 272 x 71 mm.
Đặc tính kỹ thuật
Model | QP112 |
Power | 220VAC, 50/60Hz Others also available |
Battery Capacity | 24V/ 1.2Ah |
Max. Output Current | 1A |
# of heat detectors connected | No limit Except electronic-type |
# of smoke detectors connected | 30/zone Horing Lih manufactured |
End of Line Resistor | 4.7 kΩ |
Material | 1.2mm steel plate |
Dimensions | 203 x 272 x 71 mm |
- Bảo hành: 12 tháng.
