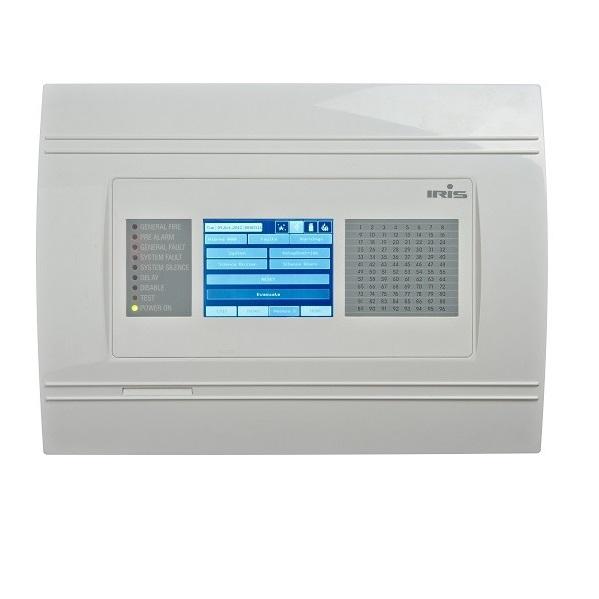

Trung tâm báo cháy loại địa chỉ 2 Loop TELETEK IRIS (2L)
- IRIS is an addressable fire alarm panel with 2 loop.
- Devices per loop: 250 (TTE loop)/ 198 (SS loop).
- Standard: EN54 – 2/4 certified.
- Programmable inputs/outputs: up to 250.
- Outputs (monitored, relay): 4.
- Outputs (non-monitored, programmable, relay): 4, 15A@24VDC.
- Memory LOG: 10 000 events.
- Panels in Ethernet network (built in TCP/IP): Up to 64.
- Panels in RS485 redundant network (optional module): Up to 64.
- Thermal printer: Optional.
- Display: 320/240 touch screen.
- Multi language support: Yes (English, Italian, Portuguese, Russian, Turkish, Polish, Croatian, Dutch, Latvian, French, Bulgarian currently available).
- Programming: ProsTE software.
- Auto addressing function.
Đặc tính kỹ thuật
| Model | IRIS (2L) |
| Main Power Supply | ~230 VAC +10%/-15% |
| Frequency | 50/ 60Hz |
| Back-up Power Supply | 1 battery, 12V/ 18Ah |
| Electrical output | 7A |
| Operating temperature | -5°C to +40°C |
| Weight (without battery) | 6kg |
| Dimensions of metal bottom | 441x331x80mm |
| Dimensions of front cover | 461x344x45mm |
- Bảo hành: 12 tháng.
