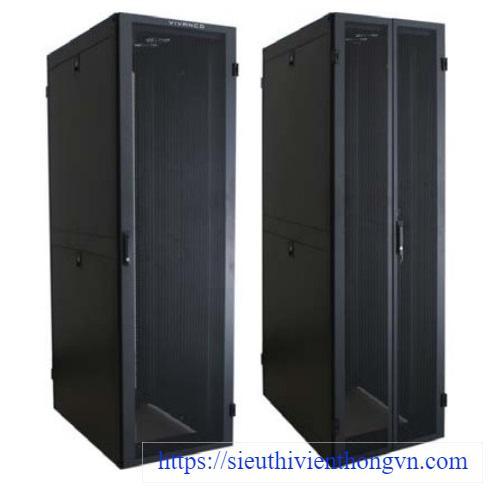

- Tủ Rack 19inch 24U VIVANCO VE6824.13.X00
- Part Number: VE6824.13.X00.
- VIVANCO VE Cabinet 24U, tempered glass in front door, sheet steel in rear door.
- Size (Width×Depth×Height): 600x800x1272 mm.
- Capacity: 24U.
Compliance
- ANSI/EIA RS-310-D
- IEC60297-2
- DIN41494 PART1
- DIN41494 PART7
Specification
- 19inch standard structure, assembling-style frame, only 8 screws & nuts used for assembling, 1300kg maximum static loading Material.
- SPCC Cold Rolled Steel.
- 19inch rails: 2.0mm; frame:1.5mm; Side panel/Top cover/Front door/Rear door 1.2mm.
Features and Benefits
- 180° maximum opening angle, removable side panels; slotted surface perforation>70%; zinc 19inch rails, SPCC cold rolled steel, powder coated; fan units installed on the top of the cabinet, easy installation.
