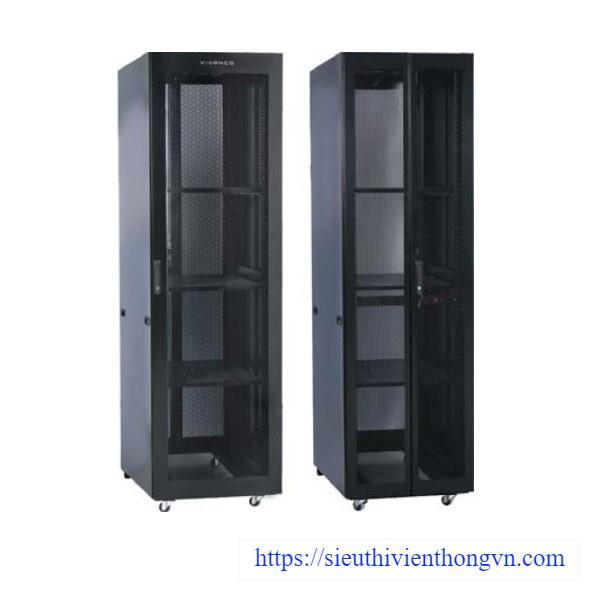

Tủ Rack 19inch 42U VIVANCO VB6842.55.X00

Tủ Rack 19inch 42U VIVANCO VB6842.55.X00

  • MS 000009537
  • VIVANCO
Giá : 13,105,000 vnđ (Đã bao gồm VAT)

Tủ Rack 19inch 42U VIVANCO VB6842.55.X00

Tủ Rack 19inch 42U VIVANCO VB6842.55.X00

- Part Number: VB6842.55.X00.

- VIVANCO VB Heavy Duty Cabinet 42U, high-density vented in front/rear door.

- Size (Width×Depth×Height): 600x800x2072 mm.

- Capacity: 42U.

Compliance

- ANSI/EIA RS-310-D.

- IEC60297-2.

- DIN41494 PART1.

- DIN41494 PART7.

Specification

- 19inch standard structure, one time forming with nine-bending style of metal, 1600kg maximum static loading, 180° maximum opening angle of front and rear Door, removable side panels for easy maintenance.

Material

- SPCC Cold Rolled Steel.

- 19inch rails: 2.0mm; frame:1.5mm; Side panel/Top cover/Front door/Rear door 1.2mm.

Features and Benefits

- High-density vented door, rear door could open from the left or right side; slotted surface (SW7 hexagon) perforation>70%, high-strength 19inch rails, SPCC cold rolled steel, powder coated; fan units installed from top, easy installation; reserved room for earth kit to meet the system requirement.
