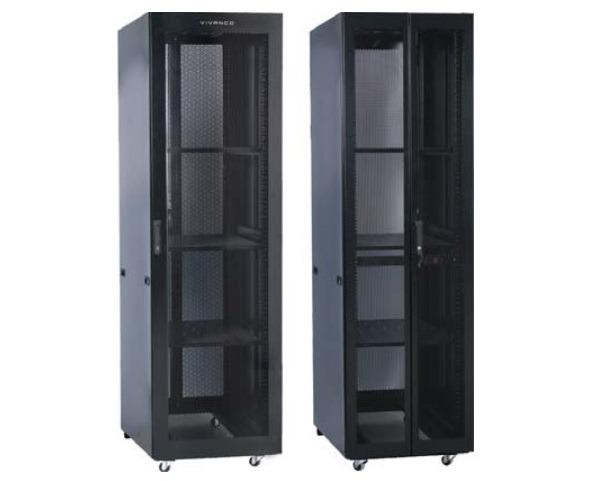

Tủ Rack 19-inch 42U VIVANCO VE6642.56.100
- Part number: VE6642.56.100
- Vivanco VE Rapid Cabinets provide a customizable solution for datacenter build-outs, network rooms, or IT closets. The feature-rich, robust design can be shipped flat packed or as a custom-configured solution that is fully assembled with accessories pre-installed. Vivanco VE Rapid Cabinets offer multiple size combinations, abundant accessories, and optional front and rear doors styles to meet your specific needs.
- Dimension (Width × Depth × Height): 600 × 600 × 2072 mm.
- Cabinet Capacity: 42U.
- Front Door: High-density single open vented door.
- Rear Door: High-density double open vented door.
- Open from the left/ right.
- Color: RAL9005Black.
Features & Benefits
- Security & Protection
+ Locking doors prevent unauthorized access to equipment;
+ Two pairs of adjustable 19-inch EIA rails provide a stable mounting structure.
- Flexibility
+ Vertical zero-U lacing panel pre-installed in rear corners for easy cable management;
+ Multiple cable entry options provide greater flexibility during installation;
+ Removable and lockable half height side panels Multi-Use;
+ Adaptable for use in data center build outs, computer rooms or data closets.
- Multi-Use
+ Adaptable for use in data center build outs, computer rooms or data closets.
- Key Features
+ Pre-installed recessed casters combine convenient mobility with minimal added height to provide additional stability;
+ Brush cable entry slots at front and back of top panel and sliding panels on bottom;
+ Ships fully assembled and can be configured with accessories to match your individual requirements.
Specification
Raw Material | SPCC |
Cabinet Structure | Assembled frame structure |
Front Door | High-density single open vented door |
Rear Door | High-density double open vented door |
Side Panel | Half height, removable side panel |
19-inch Rail | Power coated, 2.0mm thick SPCC |
Finish | Powder coated |
Max. Open Angel | 180 degree |
Color | RAL9005 Black |
Maximum Static Load Capacity | 1300 kgs |
Dimension (Width × Depth × Height) | 600×600×2072mm |
Capacity (U) | 42 |
Compliance | ANSI/EIA RS-310-D |
IEC60297-2 | |
DIN41494 PART1 | |
DIN41494 PART7 |
