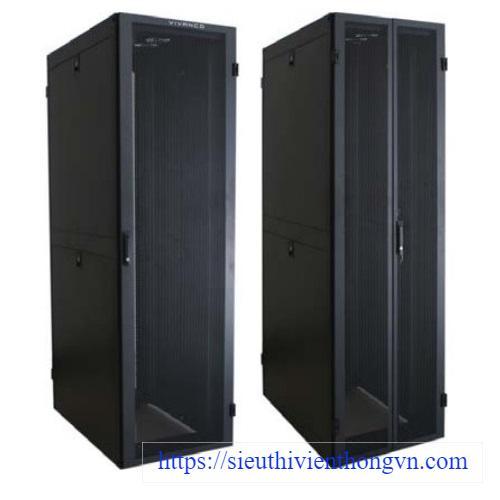

Tủ Rack 19inch 42U VIVANCO VE8842.56.X00

- Part Number: VE8842.56.X00.

- VIVANCO VE Cabinet 42U, high-density vented in front/rear door, open from the left/right side.

- Size (Width×Depth×Height): 800x800x2072 mm.

- Capacity: 42U.

Compliance

- ANSI/EIA RS-310-D

- IEC60297-2

- DIN41494 PART1

- DIN41494 PART7

Specification

- 19inch standard structure, assembling-style frame, only 8 screws & nuts used for assembling, 1300kg maximum static loading Material.

- SPCC Cold Rolled Steel.

- 19inch rails: 2.0mm; frame:1.5mm; Side panel/Top cover/Front door/Rear door 1.2mm.

Features and Benefits

- 180° maximum opening angle, removable side panels; slotted surface perforation>70%; zinc 19inch rails, SPCC cold rolled steel, powder coated; fan units installed on the top of the cabinet, easy installation.
