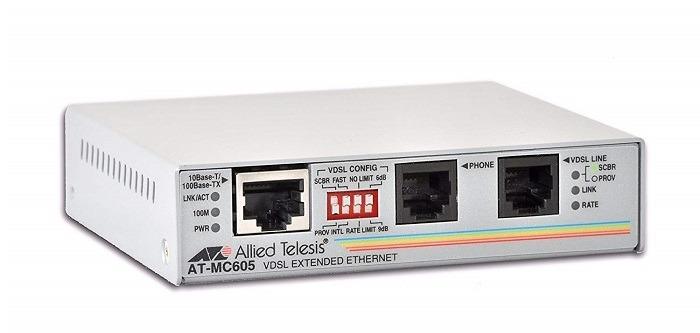

VDSL Media Converter ALLIED TELESIS AT-MC605-60
- Media Converter VDSL to 10/100TX & POTS port - Subscriber/Provider.
- Up to 100Mbps / 60Mbps VDSL operation up to 3km or 10,000ft.
- Can function as a subscriber or provider by flipping a switch.
- Traffic shaping upstream and downstream.
- Supports both fast mode and interleave mode.
- Operates over category 1, 2, 3 or 5 telephone quality cabling.
- 10/100 Ethernet port POTS port.
- Integral POTS splitter.
- Auto MDI/MDI-X.
- Power, Ethernet activity and link LEDs.
- VDSL link and rate LEDs.
- Fully configurable using front panel dipswitch.
- Standalone and rack-mountable.
- Wall-mountable using optional AT-WLMT bracket.
- Compact form factor.
- Rate-limiting is supported with the line-rate cap at 50Mbps / 20Mbps.
- Metal chassis.
- Energy Star compliant external power adapter.
- Subscriber/provider unit with EnergyStar multi-country power adapter.
Đặc tính kỹ thuật
| Model | AT-MC605-60 |
| Product Specifications | DMT modulation (MC605), Spectrally compatible with ISDN and POTS services (MC605), FDD duplexing (MC605) Datarate up to 100Mbps |
| 4M flash, Half/full-duplex, Auto-negotiation, Auto MDI/MDI-X | |
| Interface Connections | |
| VDSL interface | RJ-11 |
| Ethernet interface | RJ-45 |
| POTs interface | RJ-11 |
| Management | 4-pin DIP switch |
| Speed/Distance | Speed up to 100Mbps / 60Mbps at short distances; data throughput up to 3km or 10,000ft distances (subject to cable type) |
| Reliability | |
| MTBF | 700,000 hours |
| Power Characteristics | |
| External power supply | 120V AC, 60Hz (US model), 240V AC, 50Hz |
| Input supply voltage | 12 VDC |
| Max current | 500 mA |
| Power consumption | 4 W |
| Environmental Specifications | |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -25°C to 70°C |
| Relative humidity | 5% to 95% |
| Operating altitude | Up to 3,048 m |
| Physical Specifications | |
| Dimensions | 9.5 cm x 10.9 cm x 2.5 cm |
| Weight | 300 g |
| Mouting | Tabletop and rack-mountable |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
