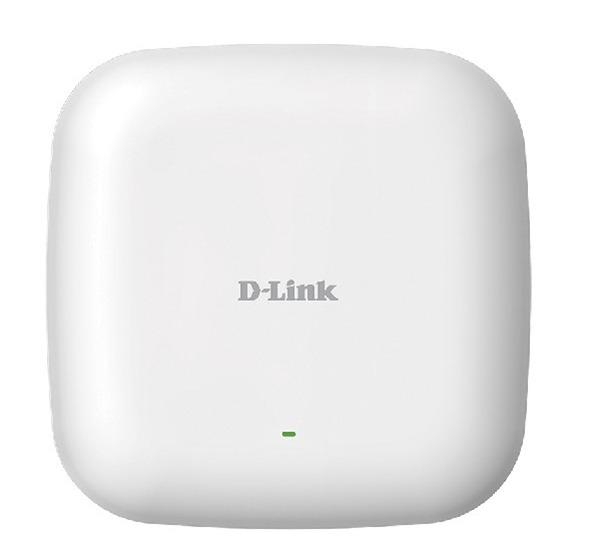

Wireless AC1200 Dual-band Gigabit PoE Access Point D-Link DAP-2660/ESGPC

Wireless AC1200 Dual-band Gigabit PoE Access Point D-Link DAP-2660/ESGPC

  • MS 000013623
  • D-Link
Giá : Liên hệ

Wireless AC1200 Dual-band Gigabit PoE Access Point D-Link DAP-2660/ESGPC

Wireless AC1200 Dual-band Gigabit PoE Access Point D-Link DAP-2660/ESGPC

-The DAP-2660/ESGPC Wireless AC1200 Concurrent Dual Band Gigabit PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options. It can provide up to combined 1200 Mbps for mobile devices.

Super-fast Wireless AC Performance

-The DAP-2660/ESGPC delivers reliable, high-speed wireless performance using the latest 802.11ac Standards, with maximum wireless signal rates of up to 300 Mbps using the 2.4 GHz band, and 867 Mbps using the 5 GHz band1. It supports exceptional device densities and offers optimal range and coverage over both bands.

-The DAP-2660/ESGPC supports advanced radio management features such as band steering, airtime fairness, and load balancing. Band steering detects and steers 5 GHz capable clients away from the overcrowded 2.4 GHz network to the less congested 5 GHz network.

-Airtime fairness allocates time equally among clients, so each client can transmit at its highest speed regardless of location or 802.11 standard version. Load balancing ensures optimal network performance by limiting the maximum number of users per access point.

802.3af Power over Ethernet Support

-The DAP-2660/ESGPC has integrated 802.3af Power over Ethernet (PoE) support, allowing this device to be installed in areas where power outlets are not readily available.

Security

-To help maintain a secure wireless network, the DAP-2660/ESGPC supports both Personal and Enterprise versions of WPA and WPA2 (802.11i), with support for RADIUS server backend and a built-in internal RADIUS server allowing users to create their accounts within the device itself. This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to protect the wireless network.

-The DAP-2660/ESGPC includes support for up to eight VLANs per band for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, the DAP-2660/ESGPC supports Network Access Protection (NAP), which allows network administrators to define multiple levels of network access based on individual client’s need.

Multiple Operation Modes

-To meet the unique needs of different business environments, the DAP-2660/ESGPC can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge, and Wireless Client.

-The DAP-2660 also supports Auto RF Management, which avoids RF interference and optimizes the output power performance.

Network Management

Network administrators have multiple options for managing the DAP-2660/ESGPC, including web (HTTP), Secure Sockets Layer (SSL, which provides for a secure connection to the Internet), Secure Shell (SSH, which provides for a secure channel between local and remote computers), and Telnet.

-The DAP-2660/ESGPC has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power.

Versatile Access Point Functionality

-The DAP-2660/ESGPC has built-in Captive Portal, which can be used to force authentication, enable billing functions, and display terms of use for a wireless network.

Technical Specifications

Device Interfaces802.11a/b/g/n/ac wireless1
1 Gigabit LAN Port (supports 802.3af PoE)
LEDsPower
StandardsIEEE 802.11a/b/g/n/ac1
IEEE 802.3u/ab/af
Wireless Frequency Range2.4 GHz band: 2.4 GHz to 2.4835 GHz
5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz3
AntennasTwo internal 3 dBi for 2.4 GHz
Two internal 4 dBi for 5 GHz
Maximum Output Power26 dbm for 2.4GHz
26 dbm for 5GHz
Functionality
SecurityWPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server
Network ManagementTelnet
Secure Telnet (SSH)
HTTP
Secure HTTP (HTTPS)
Traffic control
SNMP
AP Array
Physical and Environmental
Dimensions170 x 170 x 28 mm
Weight11.14 oz (316 grams) with antennas
Operating Voltage12 V DC +/- 10%, or 802.3af PoE
Maximum Power Consumption11 Watts
TemperatureOperating: 32 to 104 °F (0 to 40 °C)
Storage: -4 to 149 °F (-20 to 65 °C)
HumidityOperating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
CertificationsFCC
IC
CE
Wi-Fi® Certified

-Bảo hành 24 tháng.
