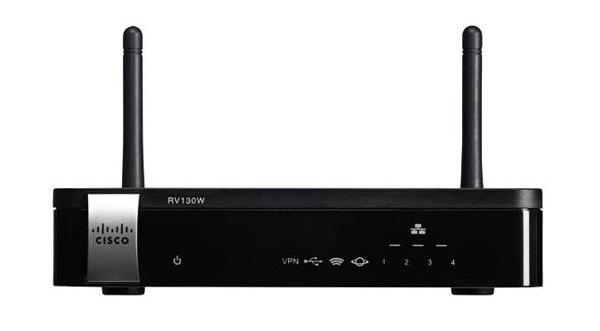

Wireless-N Multifunction VPN Router Cisco RV130W (RV130W-E-G5-K9)
- High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users.
- USB port for 3G/4G modem failover or alternative primary connectivity.
- IP Security (IPsec) site-to-site VPN helps enables secure connectivity for remote employees and multiple offices.
- Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption.
- Easy to set up and use with wizard-based configuration
Specifications
Specifications | Description |
Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
Ports | LAN, WAN, USB |
Switch | Power button (on/off) |
Buttons | Reset |
Cabling Type | Category 5e or better |
LEDs | Power, VPN, USB, WAN, Wireless, LAN (ports 1- 4) |
Operating System | Linux |
Network | |
Network Protocols | DHCP, PPPoE, PPTP, SIP, ALG |
Layer 2 Tunneling Protocol (L2TP) | |
DNS proxy | |
DHCP relay agent | |
IGMP proxy and multicast forwarding | |
Rapid Spanning Tree Protocol (RSTP) | |
Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP) | |
Network Address Translation (NAT), Port Address Translation (PAT) | |
One-to-One NAT | |
Port management | |
Port mirroring | |
Software configurable DMZ to any LAN IP address | |
LAN | Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
WAN | Single (1) 10/100/1000 Mbps Gigabit WAN port |
WLAN | Built-in high-speed 802.11n wireless access point |
Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
VLAN Support | Port-based and 802.1Q tag-based VLANs |
Number of VLANs | 5 active VLANs (3-4096 range) |
IPv6 | Dual-stack IPv4 and IPv6 |
6 to 4 tunneling | |
Stateless address auto-configuration | |
DHCPv6 Server for IPv6 Clients on LAN | |
DHCP v6 client for WAN connectivity | |
Internet Control Message Protocol (ICMP) v6 | |
Static IPv6 Routing | |
Dynamic IPv6 Routing with RIPng | |
Layer 2 | 802.1Q-based VLANs, 5 active VLANs |
Security | |
Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ |
DoS Attacks Prevented: SYN Flood Detect Rate, Echo Storm, ICMP Flood, UDP Flood, TCP Flood, Block Java, Cookies, Active-X, HTTP Proxy | |
Access Control | IP access control lists; MAC-based wireless access control |
Content Filtering | Static URL blocking or keyword blocking |
Secure Management | HTTPS, username/ password complexity |
WPS | Wi-Fi Protected Setup |
User Privileges | 2 levels of access: Admin and guest |
VPN | |
Gateway-to-gateway IPsec VPN | 10 gateway-to-gateway IPSec tunnels |
Client-to-gateway IPsec VPN | 10 client-to-gateway IPsec tunnels using The Green Bow and Shrew Soft VPN client |
PPTP VPN | 10 PPTP tunnels for remote client access |
VPN Pass-through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
Quality of Service | |
QoS | 802.1p port-based priority on LAN port, application-based priority on WAN port 3 queues |
Differentiated Services Code Point support (DSCP) | |
Class of Service (CoS) | |
Bandwidth Management for service prioritization | |
Jumbo Frame | Supports Jumbo Frame on Gigabit ports - at least 1536B |
Performance | |
NAT Throughput | 800 Mbps |
Concurrent Sessions | 12,000 |
IPsec VPN Throughput (3DES/AES) | 50 Mbps |
Management | |
Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
Languages | GUI supports English, French, Italian, German, and Spanish |
Wireless | |
WLAN | 2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
Operating channels | 11 North America, 13 most of Europe, auto channels selection |
Wireless isolation | Wireless isolation between clients |
External antennas | 2 fixed antennas |
Antenna gain in dBi | 2 dBi |
Transmit power | 802.11b: 16.5 dBm +/- 1.5 dBm; 802.11g: 15 dBm +/- 1.5 dBm; 802.11n: 12.5 dBm +/- 1.5 dBm |
Receiver sensitivity | -87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs 15, HT40 |
Radio Frequency | Single-band, works on 2.4GHz |
Wireless Domain Service (WDS) | Allows wireless signals to be repeated by up to 4 compatible devices |
Active WLAN clients | Support up to 64 concurrent clients in wireless router mode and wireless Access Point mode |
Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
Wireless VLAN map | Supports SSID to VLAN mapping with wireless client isolation |
WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
Wi-Fi Multimedia (WMM) | WMM, WMM power save (WMM-PS) |
