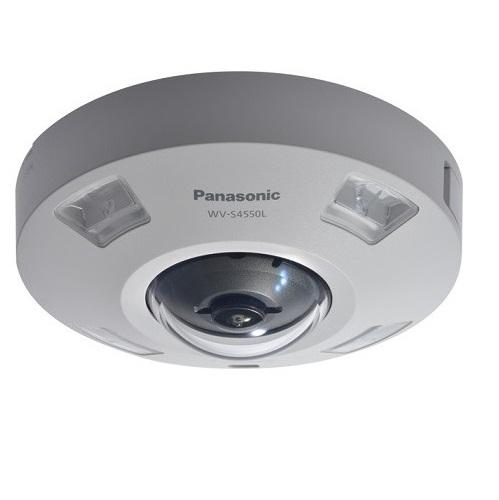

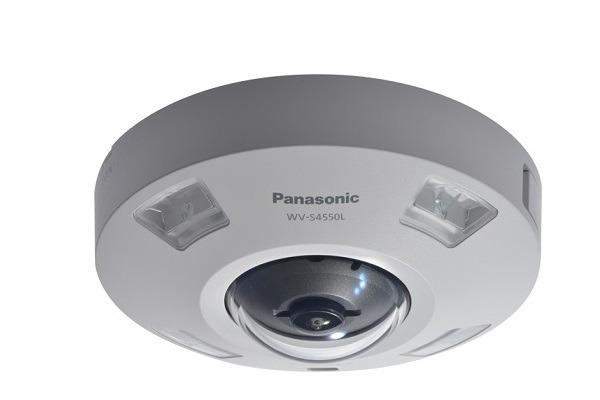

Camera IP Dome hồng ngoại 5.0 Megapixel PANASONIC WV-S4550L
- Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.
- Độ phân giải camera ip: 5.0 Megapixel.
- Tốc độ khung hình: Lên đến 30 fps.
- Ống kính: 0.84 mm.
- Độ nhạy sáng tối thiểu: Color: 0.3lx, BW: 0.04lx; B/W: 0.0lux (with IR LED on).
- Tầm quan sát hồng ngoại: 10 mét.
- Chuẩn nén hình ảnh: H.265/ H.264/ JPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện:
+ DC power supply: DC12V/ 910 mA, Approx. 10.9W;
+ PoE (IEEE802.3af compliant) Device: DC48V/ 240 mA, Approx. 11.5W (Class 0 device).
Đặc tính kỹ thuật
| Model | WV-S4550L |
| Camera | |
| Image Sensor | Approx. 1/3 type MOS image sensor |
| Minimum Illumination | - Color: 0.3 lx, BW: 0.04 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11) - BW: 0 lx (F2.4, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) - Color: 0.02 lx, BW: 0.0025 lx (F2.4, Maximum shutter: max. 16/30s, AGC: 11) |
| Intelligent Auto | On/ Off |
| Maximum shutter | Max.16/30s to Max. 1/10000s |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 108 dB (Super Dynamic: On, level: 31) |
| Image Settings | Gain (AGC), White balance |
| Image Compensation | Adaptive black stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light | High*/ Middle/ Low/ Off *Maximum irradiation distance: 10 m {Approx. 33 ft} (Mounting height: Approx. 3 m, Peripheral intensity control: On) |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type 5 *Bundled License |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Fixing angle adjustment | -5°, 0°, +5° |
| Lens | |
| Zoom Ratio | 1x |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 |
| Focal length | 0.84 mm {1/32 inches} |
| Maximum Aperture Ratio | 1 : 2.4 |
| Focus range | 0.3 m {11-13/16 inches} - ∞ |
| Angular Field of view | Horizontal: 186° Vertical: 186° |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution | - Fisheye mode max.30 fps 2192×2192/ 1280×1280/ 640×640/ 320×320 - Quad PTZ mode max.30 fps, Single PTZ mode max.30 fps 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA |
| - Double Panorama mode (max. 30 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 - Fisheye + Double Panorama mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Double Panorama) 1280×720/ 640×360/ 320×180 - Fisheye + Quad PTZ mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Quad PTZ) 1280×960/ 800×600/ VGA/ QVGA - Quad streams mode (Single PTZ (Quad streams)) 1280×960/ 800×600/ VGA/ QVGA (max. 30 fps) (Quad PTZ) 1600×1200/ 1280×960/ 800×600/ VGA/ QVGA (max. 5 fps) | |
| - Panorama mode (max. 30 fps) 1920×1080/ 1280×720/ 640×360/ 320×180 - Fisheye + Panorama mode (max. 30 fps) (Fisheye) 2192×2192/ 1280×1280/ 640×640/ 320×320 (Panorama) 1280×720/ 640×360/ 320×180 | |
| H.265/ H.264 | - Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort - Transmission Type: Unicast/ Multicast |
| JPEG | - Image Quality: 10 steps |
| Smart Coding | - GOP (Group of pictures) control : On (Frame rate control)*/ On (Advanced)*/ On (Mid)/ On (Low)/ Off *On (Frame rate control) and On (Advanced) are only available with H.265. - Auto VIQS: On / Off |
| Audio Compression | - G.726 (ADPCM): 16 kbps/ 32 kbps, G.711: 64 kbps, AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Supported Protocol | - IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ - IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| Maximum concurrent access number | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | - H.265/ H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure - JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure - Compatible SDXC/SDHC/SD card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Mobile Terminal Compatibility | iPad, iPhone (iOS 4.2.1 or later), AndroidTM mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack, Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: –48 dB ±3 dB (0 dB=1 V/ Pa,1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5V ±0.5V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) Output level: –20 dBV |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 ECE-R10, EN50498 compliant, EN50121 |
| Power Source and Power Consumption | DC power supply: DC12V/910 mA, Approx. 10.9W PoE (IEEE802.3af compliant) Device: DC48 V 240 mA, Approx. 11.5 W (Class 0 device) |
| Ambient Operating Temperature | IR LED: On -40°C to +50°C (-40°F to 122°F) IR LED: Off -40°C to +60°C (-40°F to 140°F) |
| Ambient Operating Humidity | 10% to 100 % (no condensation) |
| Water and Dust Resistance | IP66(IEC60529), Type 4X(UL50), NEMA 4X compliant |
| Shock Resistance | 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262) |
| Railway Application | EN50155-TX |
| Dimensions | - When using the attachment plate: ø154 mm × 60.3 mm (H) {ø6-1/16 inches × 2-3/8 inches (H)} Dome radius 35 mm {1-3/8 inches} - When using the base bracket : ø164 mm × 96.3 mm (H) {ø6-15/32 inches × 3-25/32 inches (H)} Dome radius 35 mm {1-3/8 inches} |
| Mass (approx.) | When using the attachment plate: Approx. 870 g {1.92 lbs} When using the base bracket: Approx. 1.3 kg {2.87 lbs} |
| Finish | Main body: Aluminum die cast, Light gray Outer fixing screws: Stainless steel Dome section: Polycarbonate resin, Clear |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
